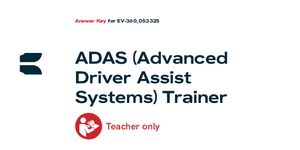

Answer Key for EV-360_053325 ADAS (Advanced Driver Assist Systems) Trainer 91-EV-360_REVB © ConsuLab Educatech Inc, 2025. Tous droits réservés. Student Assignments Step by Step Animations Available on YouTube Teacher only https://www.youtube.com/playlist?list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4 EV-360_053325-91 Table of contents 400-6330 Zéphirin-Paquet St. Québec, QC G2C 0M3 Canada consulab.com info@consulab.com Toll-free: +1 (800) 567-0791 USA: +1 (810) 222-4525 Canada: +1 (418) 688-9067 Fax: +1 (418) 843-3444 2 © ConsuLab Educatech Inc, 2025. All rights reserved. No part of this work may be reproduced or transmitted in any form by any means, electronic, mechanical, including photocopying and recording, or by any information storage or retrieval system, without written permission from the publisher. Printed in Canada. The content of this manual is applicable to models 053325 and above. Table of Contents Purpose and Function 3 ADAS Sensor Theory 4 Basic Operation 5 Educational Advantages 8 Main Features 8 Explanatory Animation 8 SA-1 Six Levels of Autonomous Driving - Answers 9 SA-2 ADAS Acronyms − Answers 10 SA-3 ADAS Components − Answers 11 SA-4 ADAS Theory Exploration - Answers 12 SA-5 ADAS Sensor Fusion - Answers 15 SA-6 ADAS Object Identification Exploration - Answers 16 SA-7 ADAS Sensor Accuracy - Answers 17 SA-8 Understanding Steering Angle Calibration - Answers 18 EV-360 Set-up for Student Assignments - Answers 19 SA-9 Understanding BSD Calibration - Answers 20 SA-10 Understanding Front Facing RADAR Calibration - Answers 25 SA-11 Understanding LiDAR Calibration - Answers 28 SA-12 Understanding Front Camera Calibration - Answers 31 SA-13 Understanding Ultrasonic Proximity Sensor Calibration - Answers 34 SA-14 Understanding Rear Camera Calibration - Answers 36 SA-15 ADAS Pre-Calibration - Answers 39 SA-16 ADAS Vehicle Specific - Answers 40 91-EV-360 Introduction consulab.com info@consulab.com 3 Purpose and Function This exciting new trainer is for teaching the concepts of autonomous vehicle systems & Advanced Driver Assist Systems (ADAS). The EV-360_035325 was designed to demonstrate the fundamental safety concepts and technologies currently incorporated in today’s advanced vehicles. Instead of using a complex proprietary large vehicle that would require manufacturer equipment, scan tool, support, and programming, we have developed a generic trainer with programming specifically adapted to an educational envi- ronment. The trainer is a scale model, providing visual cues of where the components are typically found on an actual vehicle, helping the students to recognize design function and orientation. The trainer is also designed to be used in conjunction with real vehicles as it augments practical hands-on learning. By removing the obstructions, complexity and non-relevant vehicle systems, your students will be able to focus solely on ADAS and autonomous technology. This trainer allows a student to visualize sensor readings and results, literally locating where the components are on a vehicle and compares the strengths and weaknesses of the various sensors and technologies to one another. The stu- dent becomes the processor of all the sensor inputs to experience “sensor fusion”, or the process of interpreting all of the information into a desired outcome or reaction. Because most have limited experience with ADAS technology, this product is designed for assisting the teacher explain how the technology works as well as for teaching the students why ADAS works. Side View of the EV-360_035325 ADAS Trainer consulab.com info@consulab.com 4 91-EV-360 Introduction ADAS Sensor Theory ADAS stands for Advanced Driver Assistance Systems. It refers to a set of technologies and features in modern vehicles designed to enhance safety, comfort, and convenience for the driver and passengers. ADAS systems use sensors such as cameras, RADAR, and LiDAR, to detect and respond to driving conditions and situations. The goal of an ADAS system is to assist the driver in various driving scenarios, reduce the likelihood of accidents, and improve the overall driving experience. ADAS systems are becoming increasingly common in modern vehicles and are seen as a key technology in the development of autonomous vehicles. Examples of Advanced Drivers Assistance Systems include: • Adaptive Cruise Control • Lane Departure Warning • Blind Spot Detection • Forward Collision Warning • Automatic Emergency Braking • Rear-view Cameras • Park Assist • Automatic High Beams • Lane Keeping Assistance consulab.com info@consulab.com 5 91-EV-360 Introduction Basic Operation LiDAR LiDAR stands for “Light Detection and Ranging”. It’s a remote sensing technology that uses laser light to measure distances. The LiDAR system emits laser pulses which bounce back off objects and are captured by a sensor, allowing the system to calculate distances and generate a 3D representation of the environ- ment. It’s widely used in fields such as self-driving vehicles, robotics, surveying, and geography. RADAR RADAR stands for “Radio Detection and Ranging”. It’s a technology that use radio waves to determine the range, speed, and other characteristics of objects at a distance. RADAR works by emitting a radio frequen- cy signal and analyzing the reflection back of that signal off of an object to determine its range, velocity, and other characteristics. RADAR is widely used in applications such as weather forecasting, air traffic control, military surveillance, and self-driving vehicles. BLIND SPOT DETECTION Blind Spots Detection is a driver assistance technology that alerts the driver to the presence of vehicles in their blind spots. Blind spots are areas around a vehicle that are not visible to the driver through the side mirrors or the rear-view mirror. Blind spot detection systems use sensors, such as radar or cameras, to detect the presence of vehicles in these areas and provide the driver with a warning, such as a visual or auditory alert. This technology is aimed at reducing the risk of accidents caused by vehicles not being seen in the driver’s blind spot and is commonly found in modern vehicles. ULTRASONIC SENSORS Ultrasonic Sensors are devices that uses high-frequency sound waves to measure distance, speed, or detect the presence of objects. The sensor transmits an ultrasonic pulse, which bounces back off an object and is received by the sensor. The time it takes for the pulse to travel to the object and back is used to calculate the distance to the object. Ultrasonic sensors are commonly used in applications such as robotics, industrial automation, and distance measurement. OBJECT DETECTION Object Detection is a technology that allows a computer or machine to identify objects within an image or video. It involves analyzing digital images or videos and locating and classifying objects of interest, such as people, vehicles, buildings, etc. Object detection algorithms typically use techniques from computer vision, such as image processing, pattern recognition, and machine learning to perform this task. This technology is widely used in applications such as self-driving vehicles, surveillance, and video analytics. consulab.com info@consulab.com 6 91-EV-360 Introduction STEERING WHEEL ANGLE Steering Wheel Angle refers to the steering wheel’s angle of rotation in a vehicle. It is the amount by which the steering wheel is turned to the left or right and is a measure of the degree the front wheels turn. The steering wheel angle is an important input in modern vehicles, as it is used by various systems such as the power steering, stability control, self-parking, back up camera path prediction and traction control systems to determine the direction of the vehicle and to control its handling and stability. Steering wheel angle sensors are typically used to measure the angle of the steering wheel and provide this information to the vehicle’s control systems. DRIVER PRESENCE DETECTION Driver Presence Detection is a technology used in vehicles to determine if the driver is present and attentive. It typically uses sensors, such as cameras or biometric sensors, to detect the presence and behavior of the driver. The technology can be used to prevent accidents caused by drivers who are not paying attention, such as drowsy or distracted drivers. Driver presence detection systems can also be used to adjust the vehicle’s settings based on the driver’s preferences and habits. For example, a vehicle equipped with driver presence detection may adjust the seat, mirrors, and entertainment system based on the driver’s profile. INERTIAL MEASUREMENT UNIT (IMU) Attitude is information about an object’s orientation in relation to a horizontal plane and true north. The technology used in vehicles to detect attitude, such as pitch, roll, and yaw, is typically called an Inertial Measurement Unit (IMU). An IMU is a sensor system that consists of accelerometers, gyroscopes, and sometimes magnetometers. These sensors work together to measure the acceleration, angular velocity, and orientation of a vehicle. Yaw is referred to as the angular measurement on a horizontal plane with respect to true north, The angular measure- ment on the vertical plane, is referred to as pitch or roll. YAW PITCH ROLL Z Axis X Axis Y A xis consulab.com info@consulab.com 7 91-EV-360 Introduction Accelerometers measure the linear acceleration of the vehicle in the X, Y, and Z-axes. This information is used to de- termine the pitch, roll, and yaw of the vehicle. Gyroscopes measure the angular velocity of the vehicle, which provides information about the orientation of the vehicle and its rate of change. Magnetometers are sometimes used in combina- tion with accelerometers and gyroscopes to provide a more accurate measurement of the vehicle’s orientation, espe- cially when the vehicle is in motion. The sum of all this data provided by the IMU is processed by the vehicle’s control system to determine the attitude of the vehicle. This information is then used to control various systems in the vehicle, such as the suspension, stability control, and traction control systems. IMUs are widely used in vehicles. They are a key component in advanced driver assistance systems (ADAS) and autonomous vehicles. SENSOR FUSION Sensor Fusion refers to the process of combining data from multiple sensors to produce a more comprehensive and accurate representation of the environment. In the context of autonomous vehicles, sensor fusion is used to gather data from a variety of sensors, such as cameras, LiDAR, RADAR, ultrasonic sensors, and IMUs, and combine this information to create a single, unified understanding of the vehicle’s surroundings. The goal of sensor fusion is to overcome the limitations of individual sensors and to provide a more robust and reli- able perception of the environment. For example, cameras are good at recognizing objects and textures, but they can be affected by lighting conditions and have limited range. LiDAR provides high-resolution 3D data but is expensive and can be affected by fog or rain. RADAR provides long-range data but has lower resolution. By combining the data from multiple sensors, sensor fusion can provide a more complete and accurate view of the envi- ronment, which is essential for autonomous vehicles to make safe and confident decisions. The process of sensor fusion typically involves the use of algorithms and techniques from computer vision, machine learning, and robotics to process and analyze the data from the sensors and produce a unified representation of the environment. 91-EV-360 Introduction consulab.com info@consulab.com 8 Educational Advantages This trainer allows student to visualize sensor readings and results, literally locating where the components are on a vehicle, and compares the strengths and weaknesses of the various sensors and technologies to one another. The student becomes the processor of all the sensor inputs, experiencing “sensor fusion”: the process of interpreting this information into a desired outcome or reaction. The EV-360 is also designed to be used in conjunction with real vehicles, augmenting actual on-car learning. Main Features The trainer is a scale model that provides visual cues showing where components are typically found on an actual vehicle, helping students recognize design function and orientation. It features a 10” × 6” tablet display with two viewing modes: EXPLORE and DRIVE. EXPLORE mode offers an overall view of a composite vehicle, illustrating the location of all ADAS sensors. DRIVE mode allows users to access live data views for each of the following components: • Front Camera (adjustable) • LiDAR (adjustable) • Front RADAR (adjustable) • Left Front Ultrasonic Sensor (non-adjustable) • Right Front Ultrasonic Sensor (non-adjustable) • Left Rear Ultrasonic Sensor (non-adjustable) • Right Rear Ultrasonic Sensor (non-adjustable) • Park/Reverse/Drive Selector (adjustable) • Steering Wheel Angle (with calibration) • Driver Presence (demonstrable) • Inertial Measurement Unit (adjustable) • Left Side Blind Spot RADAR (adjustable) • Right Side Blind Spot RADAR (adjustable) • Rear Camera (adjustable) Explanatory Animation A playlist of all the steps in the student assignment and setup process is available on our YouTube channel. https://www.youtube.com/playlist?list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4 91-EV-360 Student Assignment - SA-1 Answers consulab.com info@consulab.com 9 SA-1 Six Levels of Autonomous Driving — Answers LEVEL of Autonomy Definition ADAS Application 0 NO Autonomy Driver performs ALL tasks NONE 1 Driver Assistance Hands ON/Shared control Technology controlled by the driver, but driver assist is available on at least one system 2014 ~ Adaptive Cruise Control ABS TCS 2 Partial Automation Hands OFF Technology is controlled by the driv- er but driver assist is combined in multiple systems simultaneously 2017 ~ Adaptive Cruise Control (speed) Lane departure (steering) Collision Avoidance (brake) 3 Conditional Automation Eyes OFF Driver override is a necessity but is not required to monitor the environment 2020 ~ Environmental detection The driver must be ready to take con- trol of the vehicle at all times, with notice. 4 High Automation Mind OFF The vehicle can perform all driving functions under certain conditions, driver override is still optional 2023 ~ Geofencing required – Ride share The driver may have the option to control the vehicle 5 Full Automation The steering wheel is optional The vehicle is capable of performing all driving functions under all conditions 2025 ~ Speed, braking, steering, lighting, wip- ers, navigation, V2V, V2I, V2X The driver may — or may not — have the option to control the vehicle. Human monitors the driving environment Automated systems monitor the driving environment 91-EV-360 Student Assignment - SA-2 Answers consulab.com info@consulab.com 10 SA-2 ADAS Acronyms − Answers ADAS Acronym ADAS Component or Function ACC ADAPTIVE CRUISE CONTROL Component / Function LiDAR LIGHT IMAGING DETECTION & RANGING Component / Function LRR LONG RANGE RADAR Component / Function BSD BLIND SPOT DETECTION Component / Function FCW FORWARD COLLISION WARNING Component / Function AEB AUTO EMERGENCY BRAKING Component / Function LCA LANE CHANGE ASSIST Component / Function RCTA REAR CROSS TRAFFIC ALERT Component / Function MRR MEDIUM RANGE RADAR Component / Function RADAR RADIO DETECTION & RANGING Component / Function EPS ELECTRIC POWER STEERING Component / Function IFV INTELLIGENT FORWARD VIEW Component / Function PCW PEDESTRIAN COLLISION WARNING Component / Function LDW LANE DEPARTURE WARNING Component / Function 91-EV-360 Student Assignment - SA-3 Answers consulab.com info@consulab.com 11 SA-3 ADAS Components − Answers NOTE: This trainer is a generic composite vehicle illustrating some common ADAS components and not meant to be reflective of any specific vehicle. Additional service information may be needed to complete this. # ADAS Input Component Definition, Operation and Purpose S1 Front Camera Captures images of the environment ahead of the vehicle and incorporates ob- ject detection software allowing the ADAS computer to make decisions based on object recognition. S2 LiDAR Light Detection and Ranging: A remote sensing method that uses light in the form of a pulsed laser to measure distances. Provides essential intelligence to detect more objects to offer a better detailed view of surroundings. S3 Front RADAR Radio Detection and Ranging: A detection system that uses radio waves to find the position of an object that cannot be visually seen. Front facing RADAR is usually long range. S4 LF Ultrasonic A detection system that uses sound waves to measure “time of flight” (TOF) to an object. Used in low-speed maneuvers. S5 RF Ultrasonic A detection system that uses sound waves to measure “time of flight” (TOF) to an object. Used in low-speed maneuvers. S6 Park/Reverse/Drive Selector In addition to changing the direction of a vehicle, the transmission range selec- tor signals the ADAS computer which camera display is driver visible to as well as what sensors to activate. S7 Steering Wheel Driver control of vehicle direction, rate of direction change, steering angle input. S8 Touch Pad Occupant presence detection and will prevent the vehicle from moving if a driver is not detected S9 IMU (Inertial Measurement Unit) Measure pitch, roll and yaw of the vehicle in motion and at rest to provide input for stability control, acceleration, and braking rate S10 LS Blind Spot RADAR Radio Detection and Ranging: A detection system that uses radio waves to find the position of an object that cannot be visually seen. Blind Spot RADAR is usually short range. S11 RS Blind Spot RADAR Radio Detection and Ranging: A detection system that uses radio waves to find the position of an object that cannot be visually seen. Blind Spot RADAR is usually short range. S12 Rear Camera Captures images of the environment behind the vehicle and responds to the steering angle sensor to create a projected path for backing up the vehicle. S13 LR Ultrasonic A detection system that uses sound waves to measure “time of flight” (TOF) to an object. Used in low-speed maneuvers. S14 RR Ultrasonic A detection system that uses sound waves to measure “time of flight” (TOF) to an object. Used in low-speed maneuvers. 91-EV-360 Student Assignment - SA-4 Answers consulab.com info@consulab.com 12 SA-4 ADAS Theory Exploration - Answers NOTE: This trainer is a generic composite vehicle illustrating some common ADAS components and not meant to be reflective of any specific vehicle. Additional service information may be needed to complete this. Material LiDAR Front RADAR Ultrasonic Blind Spot RADAR Test Condition Metal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 90º to target Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted UP Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted DOWN Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted LEFT Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted RIGHT Distance(s) Glass Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 90º to target Loses target at angle Reflects an accurate signal Loses target at angle Reflects an accurate signal 45º tilted UP Loses target at angle Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted DOWN Loses target at angle Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted LEFT Loses target at angle Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted RIGHT NOTE: Do NOT stand in front of glass or you become the target Distance(s) 91-EV-360 Student Assignment - SA-4 Answers consulab.com info@consulab.com 13 Material LiDAR Front RADAR Ultrasonic Blind Spot RADAR Test Condition Wood Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 90º to target Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted UP Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted DOWN Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted LEFT Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted RIGHT Distance(s) Plastic Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 90º to target Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted UP Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted DOWN Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted LEFT Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted RIGHT Distance(s) Foam (try different foams) Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 90º to target Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted UP Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted DOWN Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted LEFT Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted RIGHT Distance(s) 91-EV-360 Student Assignment - SA-4 Answers consulab.com info@consulab.com 14 Material LiDAR Front RADAR Ultrasonic Blind Spot RADAR Test Condition Fabric / Cloth Reflects an accurate signal Reflects an accurate signal Loses accuracy Reflects an accurate signal 90º to target Reflects an accurate signal Reflects an accurate signal Loses accuracy Reflects an accurate signal 45º tilted UP Reflects an accurate signal Reflects an accurate signal Loses accuracy Reflects an accurate signal 45º tilted DOWN Reflects an accurate signal Reflects an accurate signal Loses accuracy Reflects an accurate signal 45º tilted LEFT Reflects an accurate signal Reflects an accurate signal Loses accuracy Reflects an accurate signal 45º tilted RIGHT Distance(s) Mirror Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 90º to target Loses target at angle Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted UP Loses target at angle Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted DOWN Loses target at angle Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted LEFT Loses target at angle Reflects an accurate signal Reflects an accurate signal Reflects an accurate signal 45º tilted RIGHT Distance(s) Other (Carbon fiber, water, ice, no light, etc) 90º to target 45º tilted UP 45º tilted DOWN 45º tilted LEFT 45º tilted RIGHT Distance(s) 91-EV-360 Student Assignment - SA-5 Answers consulab.com info@consulab.com 15 SA-5 ADAS Sensor Fusion - Answers NOTE: This trainer is a generic composite vehicle illustrating some common ADAS components and not meant to be reflective of any specific vehicle. Additional service information may be needed to complete this. This exercise is step five in understanding the combined operation of ADAS components. Using the EV-360 trainer, one student at a time, place the gear selector into all three choices. Then list what sensors are enabled and explain why these sensors are needed to accomplish sensor fusion for the particular gear selection. NOTE: This trainer is a generic composite vehicle illustrating some common ADAS components and not meant to reflec- tive any specific vehicle. Additional service information may be needed to complete. Shifter Selection Sensors Enabled and Explain Sensor Fusion PARK ALL 4 corner ultrasonic sensors are used for proximity sensing allowing the ADAS ECU to determine how close objects are to the vehicle when parked. 2 blind spot detectors to assist in case “reverse” is being considered or a sharp turn imme- diately after selecting drive. LiDAR to assess the immediate distance in front of vehicle in case “drive” were to be se- lected next. ALL this information is “fused” to prepare for either a selection of “drive” or “reverse”. REVERSE 2 rear corner ultrasonic sensors to detect close proximity of surrounding objects while backing up. Rear facing camera with projected path optics. These two ADAS features advise and warn the driver of any potential collision during a “reverse” maneuver. DRIVE 2 front corner ultrasonic sensors to detect close proximity of surrounding objects in front of the vehicle. LiDAR to look far down the road in front of the vehicle when moving forward. Used for adaptive cruise control, emergency braking. 2 blind spot detectors to warn the driver a vehicle in either side blind spot and assist in lane changes and works in conjunction with the turn signals. Front facing camera with object detection that is used to determine what is in front of a moving vehicle to determine severity of risk. Also used for lane departure warning. RADAR is also incorporated to determine objects in a wider range of view to determine the distance as well as motion of object. 91-EV-360 Student Assignment - SA-6 Answers consulab.com info@consulab.com 16 SA-6 ADAS Object Identification Exploration - Answers NOTE: it is recommended to have an advanced student gather the answers to this assignment for the instructor to get an example for future demonstrations in class. This exercise is step six in understanding the limits of ADAS components. Using the EV-360 trainer, open the Forward Facing Camera on the tablet and shift to Drive Gear to explore the concept of object identification. Place different objects in front of the forward facing camera to determine if the camera display will accurately identify it. The % displayed next to the name of the object detected indicates the certainty of that object being what the camera sees. Explain your results below. ** Try placing a photo or video in front of the camera multiple times to see how machine learning will eventually rec- ognize an object quicker and more accurately. Object placed in view of camera % of certainty Object detected Notes of limitations 91-EV-360 Student Assignment - SA-7 Answers consulab.com info@consulab.com 17 SA-7 ADAS Sensor Accuracy - Answers NOTE: Due to variances between trainers, this assignment must be validated on the trainer purchased and record the results for future use. This exercise is step seven in understanding the accuracy of ADAS components in relation to the calibration process. There are two calibrations to consider – the accuracy of the sensor itself and the required position or aim of the sensor as it relates to contributing accurate information to allow correct ADAS operation. This assignment compares the sensor reading to an actual measurement. Using the EV-360 trainer, open each component on the tablet and verify accuracy of the distance measured by the sensor to a stationary target. Then compare that measurement to the actual distance using a tape measure. Record your results below. ADAS Input Component Distance provided by Sensor Actual Measured Distance Difference (if any) S2 LiDAR S3 Front RADAR S4 Ultrasonic L / F S5 Ultrasonic R / F S10 Blind Spot RADAR L / S S11 Blind Spot RADAR R / S S13 Ultrasonic L / R S14 Ultrasonic R / R 91-EV-360 Student Assignment - SA-8 Answers consulab.com info@consulab.com 18 SA-8 Understanding Steering Angle Calibration - Answers This exercise is step eight in understanding the accuracy of the steering angle in relation to the calibration process. This assignment will illustrate the importance of the steering angle calibration and how incorrect calibration can affect ADAS operation. Using the EV-360 trainer, open the Steering Angle Calibration mode on the tablet and follow instructions in the chart below, recording your observations Calibration Process Rear Camera Projection Vehicle ADAS Function Perform steering calibration, turning steering wheel correctly to L & R lock as instructed on tablet screen. How well does the rear camera’s path projection follow the steering wheel? The path moves exactly with the steering wheel, beginning and ending movement with the wheel movement. What is the purpose of the rear cam- era path projection ADAS feature? In addition to proper rear and side view mirror usage, this feature safely predicts the path the vehicle will follow in reverse, avoiding a collision with other vehicles or objects, assist- ing in parking operations especially. Re-calibrate, but this time do not turn the steering FULL L & R, instead hold mid-way and let it calibrate to that position. How well does the rear camera’s path projection follow the steering wheel? The path moves only partially with the steering wheel, stopping at the point of calibration. The steering wheel can continue to rotate to full stop, but the path will not follow. How would this affect ADAS? Relying on just the projected path while in reverse, this incorrectly calibrated path will not follow the steering in reverse, allowing a pos- sible collision with other vehicles or objects. 91-EV-360 Trainer Set-up consulab.com info@consulab.com 19 EV-360 Set-up for Student Assignments IMPORTANT: One time trainer set up required for SA-9 to SA-14: Conditions Required Animation Link 1. Prepare the area to simulate an average traffic lane. Click Here: OR Scan QR Code : 1.1 Mark off three parallel “lane markers” with chalk: 3’ (1 m) apart and 20’ (6 m) long. - The two outside lines should be one color (lane markers) and the line in the middle should be a different color (centerline). 2. Placement of the trainer. 2.1 Place the EV-360 on a level table. - The trainer should be in the middle. 2.2 Place the table between the lane markers on the centerline. - Keep 10’ in front of and 10’ behind the EV-360. 3. Find the centerline of the EV-360. 3.1 Find the center of the trainer. - Measure the width of the trainer and divide that number by 2. 3.2 Place a piece of tape on the trainer deck area at the front and rear edge of the EV-360. 3.3 Measuring from one side of trainer, mark the center point on front and rear tapes. 3.4 Now we have a mark at the front edge and rear edge (on tape) locating the center of the trainer. 3.5 Holding a line with a plumb bob attached to it, place the line on the FRONT center marker (on the tape). 3.6 Let the plumb bob hang down to almost touch the floor (even over the front of the table if needed). 3.7 Move the trainer on the table until the tip of the plumb bob is pointing to the centerline drawn on the floor. 3.8 Repeat steps 3.5 to 3.7 for the REAR edge. 3.9 Your trainer should be ready now to continue with Student Assignments 9-14. https://www.youtube.com/watch?v=VpEptHMbZW0&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=1 91-EV-360 Student Assignment - SA-9 consulab.com info@consulab.com 20 SA-9 Understanding BSD Calibration NOTE: Initial EV-360 SA-9−14 Set-Up must be performed FIRST (See EV-360 Set-up for Student Assignments). This exercise is step nine in understanding the importance of accurate ADAS sensor calibration and how incorrect cali- bration can affect system operation. Using the EV-360 trainer, open the Blind Spot Detection (BSD) mode on the tablet, follow instructions below and answer the questions at the end of the assignment. Additional equipment needed: Masking tape, color chalk, protractor, tape measure, string (mason line) and plumb bob. To practice calibration on this trainer, the following conditions are required: Conditions Required Animation Link Allow 20 feet (6 metres) around the EV-360 during this assignment. Click Here: OR Scan QR Code : 1. Adjust both BSD sensors to vertical. 1.1 Use provided protractor with string to adjust the BSD sensors to within 3º of perpendicular to the trainer’s top surface. 2. Left BSD Calibration 2.1 Align the left side BSD sensor to the MIDDLE graduated mark on the sensor mounting base (indicates a 30º angle off the center line of the trainer) (see animations provided). 2.2 Place the flat side of the protractor against the face of the BSD sensor and align the string to the 90º mark, then extend the string out to the lane markers on the floor. 2.3 Extend the string as far as possible. - Using colored chalk, mark the floor with an “X” where the string intersects with the lane markers previously drawn on the floor. A plumb bob may be needed to accurately mark floor. - Using the same color chalk, mark the floor 20’ (6 m) farther down the same string line. 2.4 The left side BSD should now be perpendicular to trainer’s top surface and aimed at a 30º angle away from the LEFT rear of the trainer. https://www.youtube.com/watch?v=nHJeI8KsmDM&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=2 91-EV-360 Student Assignment - SA-9 consulab.com info@consulab.com 21 Conditions Required Animation Link 3. Right BSD Calibration Click Here: OR Scan QR Code : 3.1 Align the left side BSD sensor to the MIDDLE graduated mark on the sensor mounting base (indicates a 30º angle off the center line of the trainer) (see animations provided). 3.2 Place the flat side of the protractor against the face of the BSD sensor and align the string to the 90º mark, then extend the string out to the lane markers on the floor. 3.3 Extend the string as far as possible. - Using colored chalk, mark the floor with an “X” where the string intersects with the lane markers previously drawn on the floor. A plumb bob may be needed to accurately mark floor. - Using the same color chalk, mark the floor 20’ (6 m) farther down the same string line. 3.4 The right side BSD should now be perpendicular to trainer’s top surface and aimed at a 30º angle away from the RIGHT rear of the trainer. Find the BSD Range and View. Use provided protractor with string for both sensors. Click Here: OR Scan QR Code : 1. Find the Right Side BSD Target Entry Point 1.1 Again, place the flat side of the protractor against the face of the right side BSD sensor being careful not to move BSD sensor (see animations provided). 1.2 Hand the other end of the string to a second student. 1.3 While watching the EV-360 tablet display (or projected view on larger display), have the second student walk from behind the trainer on the RIGHT lane marker to find where the BSD just starts to catch them as a “target” entering the rear edge of the BSD range view, simulating a vehicle just entering the blind spot. - Some movement from the “target” might be required for detection. - NOTE: there is some time latency for the sensor to detect target. 1.4 Using the same color chalk, mark the floor with an “X” where the held string intersects the lane markers previously drawn on the floor and label as BSD ENTRANCE. A plumb bob may be needed to accurately mark floor. 1.5 Using the same color chalk, mark the floor 20’ (6 m) farther down the same string line. 1.6 Record the protracted angle: https://www.youtube.com/watch?v=nHJeI8KsmDM&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=2 https://www.youtube.com/watch?v=54qO2ea6zs4&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=3 91-EV-360 Student Assignment - SA-9 consulab.com info@consulab.com 22 Conditions Required Animation Link 2. Find the Right Side BSD Target Exit Point Click Here: OR Scan QR Code : 2.1 While watching the EV-360 tablet display (or projected view on larger display), have the stu- dent continue to walk forward on the RIGHT lane marker to find where the BSD just starts to lose them as a “target” leaving the front edge of the range view, simulating a vehicle just leaving the blind spot. - Some movement from the “target” might be required for detection. - NOTE: there is some time latency for the sensor to detect target. 2.2 Using the same color chalk, mark the floor with an “X” where the held string intersects the lane markers previously drawn on the floor and label as BSD EXIT. A plumb bob may be needed to accurately mark floor. 2.3 Using the same color chalk, mark on the floor 20’ (6 m) farther down the same string line. 2.4 Record the protracted angle: 3. Find the Left Side BSD Target Entry Point 3.1 Again, place the flat side of the protractor against the face of the right side BSD sensor being careful not to move BSD sensor (see animations provided). 3.2 Hand the other end of the string to a second student. 3.3 While watching the EV-360 tablet display (or projected view on larger display), have the second student walk from behind the trainer on the LEFT lane marker to find where the BSD just starts to catch them as a “target” entering the rear edge of the BSD range view, simulat- ing a vehicle just entering the blind spot. - Some movement from the “target” might be required for detection. - NOTE: there is some time latency for the sensor to detect target. 3.4 Using the same color chalk, mark the floor with an “X” where the held string intersects the lane markers previously drawn on the floor and label as BSD ENTRANCE. A plumb bob may be needed to accurately mark floor. 3.5 Using the same color chalk, mark the floor 20’ (6 m) farther down the same string line. 3.6 Record the protracted angle: 4. Find the Left Side BSD Target Exit Point 4.1 While watching the EV-360 tablet display (or projected view on larger display), have the student continue to walk forward on the LEFT lane marker to find where the BSD just starts to lose them as a “target” leaving the front edge of the range view, simulating a vehicle just leaving the blind spot. - Some movement from the “target” might be required for detection. - NOTE: there is some time latency for the sensor to detect target. https://www.youtube.com/watch?v=54qO2ea6zs4&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=3 91-EV-360 Student Assignment - SA-9 consulab.com info@consulab.com 23 Conditions Required Animation Link 4.2 Using the same color chalk, mark the floor with an “X” where the held string intersects the lane markers previously drawn on the floor and label as BSD EXIT. A plumb bob may be needed to accurately mark floor. Click Here: OR Scan QR Code : 4.3 Using the same color chalk, mark on the floor 20’ (6 m) farther down the same string line. 4.4 Record the protracted angle: Find the BSD Complete Coverage. 1. Find the Right Side BSD Range Limit 1.1 Next, test the RIGHT BSD radar range by walking directly away from the BSD until the “target is lost”. 1.2 Mark the floor as BSD RANGE LIMIT (using string/tape measure will accomplish this task, and a plumb bob may be needed to accurately mark floor) (see animations provided). 1.3 Using the same color chalk, finish marking off the entire BSD detection area on the floor (ENTRANCE, detection angle, range/distance, EXIT) (see animations provided). 1.4 Record the entire BSD detection area protracted angle: R/S 2. Find the Left Side BSD Range Limit 2.1 Next, evaluate the LEFT BSD radar range by walking directly away from the BSD until the “target is lost”. 2.2 Mark the floor as BSD RANGE LIMIT (using string/tape measure will accomplish this task, and a plumb bob may be needed to accurately mark floor) (see animations provided). 2.3 Using the same color chalk, finish marking off the entire BSD detection area on the floor (ENTRANCE, detection angle, range/distance, EXIT) (see animations provided). 2.4 Record the entire BSD detection area protracted angle: L/S 3. OPTIONAL: Move BSD’s to different marks on the base of sensor (each base mark is 30º) and repeat exercise to observe movement of the BSD detection area location. https://www.youtube.com/watch?v=54qO2ea6zs4&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=3 91-EV-360 Student Assignment - SA-9 Answers consulab.com info@consulab.com 24 SA-9 BSD Answers 1. Where is the area located that the Blind Spot Detectors are designed to warn drivers? On either side of vehicle, but actually in the lane next to the one occupied by driver. 2. What other technology is commonly used in blind spot detection? Cameras, Radar, and GPS. 3. Where can all BSD be located on a vehicle? Usually in both rear bumper corners and in both outside view mirrors. 4. Using the ENTRANCE or EXIT points previously marked on the lane markers, how many feet would a BSD that is aimed ½” (1 cm) (1 cm) off affect the accuracy of its warning? Approximately 2-3 feet (0.5 - 1 metre). 5. In feet (meters) per second, how fast is a vehicle travelling at 60 MPH (100km/h)? 60 X 5280 (feet per mile) divided by (60 X 60) = 88 feet per second. 100 × 1000 (metres per kilometre) ÷ (60 × 60) = 27.8 metres per second (m/s) 6. Regarding blind spot detection, how many feet (metres) per second is a vehicle passing you at a speed 10 MPH (20 km/h) faster than you are travelling? 10 X 5280 (feet per mile) divided by (60 X 60) = 14 feet per second. 20 × 1000 (metres per kilometre) ÷ (60 × 60) = 5.6 metres per second 7. At any speed, if a BSD is aimed ½” (1 cm) (1 cm) off, how would that affect the accuracy? The warning zone will shift forward or backward by approximately 2–3 feet (1 metre) or more the farther the ap- proaching vehicle is from the sensor (see question 4). This means the alert will not accurately represent the true blind spot, which does not change. 91-EV-360 Student Assignment - SA-10 consulab.com info@consulab.com 25 SA-10 Understanding Front Facing RADAR Calibration NOTE: Initial EV-360 SA-9−14 Set-Up must be performed FIRST (See EV-360 Set-up for Student Assignments). This exercise is step ten in understanding the importance of accurate ADAS sensor calibration and how incorrect cali- bration can affect system operation. Using the EV-360 trainer, open the Front Radar mode on the tablet, follow instructions below and answer the questions at the end of the assignment. Additional equipment needed: Masking tape, color chalk, protractor, tape measure, string (mason line), plumb bob. To practice calibration on this trainer, the following conditions are required: Conditions Required Animation Link Allow 20 feet (6 metres) around the EV-360 during this assignment. Click Here: OR Scan QR Code : Front Facing RADAR Calibration, Side and Range Limits 1. Correct the Front RADAR vertical angle to within 3º of perpendicular to the trainer’s top surface. Use a protractor. 2. Front RADAR Calibration. 2.1 Align the sensor to the MIDDLE graduated mark on the sensor mounting base. - Place the flat side of the protractor against the face of the RADAR sensor and align the string to the 90º mark, then extend the string out forward 20’ (6 m) and make a mark on the floor. A plumb bob may be needed to accurately mark floor (see animations included). - Object Detection and Sensitivity will need to be explored until centerline target is recognized. - RADAR is extremely sensitive to surroundings, the less-the better. 3. Find the RADAR side limits. 3.1 With the flat side of the protractor still against the face of the RADAR sensor and being careful not to move the sensor, pulling the string over the top of the protractor, hand the other end of the string to a second student (see animations included). 3.2 While watching the EV-360 tablet display (or projected view on larger display), have the stu- dent holding the string walk from the left side into the “lane” to find where the RADAR just starts to catch this movement as a “target” (see animations included). https://www.youtube.com/watch?v=BDTCJHxpqm8&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=5 91-EV-360 Student Assignment - SA-10 consulab.com info@consulab.com 26 Conditions Required Animation Link 3.3 Using the same color chalk, mark a line from the RADAR center out to this intersection point at the lane marker and label floor as LEFT RADAR LIMIT. A plumb bob may be needed to accurately mark floor. Click Here: OR Scan QR Code : 3.4 Record the L/S protracted angle: 3.5 Again, with the flat side of the protractor still against the face of the RADAR sensor and being careful not to move the sensor, pulling the string over the top of the protractor, hand the other end of the string to a second student (see animations included). 3.6 While watching the EV-360 tablet display (or projected view on larger display), have the stu- dent holding the string walk from the right side into the “lane” to find where the RADAR just starts to catch this movement as a “target” (see animations included). 3.7 Using the same color chalk, mark a line from the RADAR center out to this intersection point at the lane marker and label floor as RIGHT RADAR LIMIT. A plumb bob may be needed to accurately mark floor. 3.8 Record the R/S protracted angle: 4. Find the RADAR range limit. 4.1 Test the RADAR projection range by walking directly away from the RADAR view until the “target is lost”. 4.2 Using the same color chalk, mark the floor as RADAR RANGE LIMIT. 4.3 Using the same chalk, finish marking off the entire RADAR detection area on the floor (will look like a triangle) (LEFT LIMIT, detection angle, range/distance, RIGHT LIMIT). 4.4 Record the entire RADAR detection area protracted angle: 4.5 Record RADAR chalk color used: 5. OPTIONAL: Move RADAR to different marks on the base of sensor (each base mark is 30º) and repeat exercise to observe movement of the RADAR detection area location. https://www.youtube.com/watch?v=BDTCJHxpqm8&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=5 91-EV-360 Student Assignment - SA-10 Answers consulab.com info@consulab.com 27 SA-10 RADAR Answers 1. How large is the Front Facing RADAR detection area designed to warn drivers? Students will have to calculate the area of a triangle, or one half of the base times height: AREA = 1/2 X (BASE X HEIGHT) 2. What other technology is commonly used in Front RADAR detection? Front facing cameras, LIDAR, multiple radar. 3. Where can a Front RADAR be physically located on a vehicle? Typically mounted in the front grille or front and rear bumper covers. 4. Using the LEFT and RIGHT points previously marked on the lane markers, how many feet (metres) would a RADAR that is aimed ½” (1 cm) off Left or Right affect the accuracy of its view? Answers will vary. It would shift the entire detection area off by 3 feet (1 metre) or more, making it less accu- rate further away from the vehicle. 5. At 100’ (30 m) out in front of the vehicle, how far off in feet is the RADAR accuracy if it is aimed incorrectly UP or DOWN by ½” (1 cm)? Answers will vary. Students should recognize that even a small aiming error can create a much larger position error as distance increases. The farther an object is from the RADAR sensor, the greater the resulting detection error. 6. In feet (metres) per second, how fast is a vehicle travelling at 10 MPH (20 km/h)? 14 feet per second (5.6 m/s). 7. In feet (metres) per second, how fast is a vehicle travelling at 25 MPH (40 km/h)? 30 feet per second (11.1 m/s). 8. In feet (metres) per second, how fast is a vehicle travelling at 45 MPH (70 km/h)? 60 feet per second (19.4 m/s). 9. In feet (metres) per second, how fast is a vehicle travelling at 60 MPH (100 km/h)? 88 feet per second (27.8 m/s). 10. How much would 1º of miscalibration affect ADAS lane departure operation? Just one degree of misalignment can cause the average-sized vehicle with lane departure warning to leave its lane within 180 feet (55 metres). 91-EV-360 Student Assignment - SA-11 consulab.com info@consulab.com 28 SA-11 Understanding LiDAR Calibration NOTE: Initial EV-360 SA-9−14 Set-Up must be performed FIRST (See EV-360 Set-up for Student Assignments). This exercise is step eleven in understanding the importance of accurate ADAS sensor calibration and how incorrect calibration can affect system operation. Using the EV-360 trainer, open the LiDAR mode on the tablet, follow instructions below and answer the questions at the end of the assignment. Additional equipment needed: Masking tape, color chalk, protractor, tape measure, string (mason line), plumb bob. To practice calibration on this trainer, the following conditions are required: Conditions Required Animation Link Allow 20 feet (6 metres) around the EV-360 during this assignment. Click Here: OR Scan QR Code : LiDAR Calibration, Side and Range Limits 1. Correct the LiDAR vertical angle to within 3º of perpendicular to the trainer’s top surface. Use a protractor. 2. LiDAR Calibration. 2.1 Align the sensor to the MIDDLE graduated mark on the sensor mounting base. - Place the flat side of the protractor against the face of the LiDAR sensor and align the string to the 90º mark, then extend the string out forward 20’ (6 m) and make a mark on the floor. A plumb bob may be needed to accurately mark floor (see animations included). 3. Find the LiDAR side limits. 3.1 With the flat side of the protractor still against the face of the RADAR sensor and being careful not to move the sensor, pulling the string over the top of the protractor, hand the other end of the string to a second student (see animations included). 3.2 While watching the EV-360 tablet display (or projected view on larger display), have the student holding the string walk from the left side into the “lane” to find where the LiDAR just starts to catch this movement as a “target” (see animations included). 3.3 Using the same color chalk, mark a line from the LiDAR center out to this intersection point at the lane marker and label floor as LEFT LiDAR LIMIT. A plumb bob may be needed to accurately mark floor. https://www.youtube.com/watch?v=K4O-L5OhYZU&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=6 91-EV-360 Student Assignment - SA-11 consulab.com info@consulab.com 29 Conditions Required Animation Link 3.4 Record the L/S protracted angle: Click Here: OR Scan QR Code : 3.5 Again, with the flat side of the protractor still against the face of the LiDAR sensor and being careful not to move the sensor, pulling the string over the top of the protractor, hand the other end of the string to a second student (see animations included). 3.6 While watching the EV-360 tablet display (or projected view on larger display), have the stu- dent holding the string walk from the right side into the “lane” to find where the LiDAR just starts to catch this movement as a “target” (see animations included). 3.7 Using the same color chalk, mark a line from the LiDAR center out to this intersection point at the lane marker and label floor as RIGHT LiDAR LIMIT. A plumb bob may be needed to accurately mark floor. 3.8 Record the R/S protracted angle: 4. Find the LiDAR range limit. 4.1 Test the LiDAR projection range by walking directly away from the LiDAR view until there is no longer a distance indicated (out of range). 4.2 Using the same color chalk, mark the floor as LiDAR RANGE LIMIT. 4.3 Using the same chalk, finish marking off the entire LiDAR detection area on the floor (will look like a triangle) (LEFT LIMIT, detection angle, range/distance, RIGHT LIMIT). 4.4 Record the entire LiDAR detection area protracted angle: 4.5 Record LiDAR chalk color used: 5. OPTIONAL: Move LiDAR to different marks on the base of sensor (each base mark is 30º) and repeat exercise to observe movement of the LiDAR detection area location. https://www.youtube.com/watch?v=K4O-L5OhYZU&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=6 91-EV-360 Student Assignment - SA-11 Answers consulab.com info@consulab.com 30 SA-11 LiDAR Answers 1. How large is the area located that the LiDAR is designed to warn drivers? Students will have to calculate the area of a triangle, or one half of the base times height: AREA = 1/2 X (BASE X HEIGHT) 2. How does the LiDAR detection area compare with RADAR? LIDAR has a more focused pattern and can measure long distances like RADAR, however RADAR will successful- ly in rain, snow, and fog better. Both work together in collision avoidance and adaptive cruise control. 3. Where can a LiDAR(s) be physically located on a vehicle? LIDAR can be located at the top or corner of the windshield, on the side mirrors or in autonomous vehicles it could be located on top of the vehicle for a bird’s eye view. 4. What other technology is commonly used in LiDAR detection? Front cameras and RADAR. 5. What are some common limits of LiDAR? Distance, reflection off of mirror-like objects, use in high sun angles since the laser principles depend on reflec- tion, high costs and appearance. 91-EV-360 Student Assignment - SA-12 consulab.com info@consulab.com 31 SA-12 Understanding Front Camera Calibration NOTE: Initial EV-360 SA-9−14 Set-Up must be performed FIRST (See EV-360 Set-up for Student Assignments). This exercise is step twelve in understanding the importance of accurate ADAS sensor calibration and how incorrect calibration can affect system operation. Using the EV-360 trainer, open the Front Camera mode on the tablet, shift to DRIVE, and follow instructions below and answer the questions at the end of the assignment. Additional equipment needed: Masking tape, color chalk, protractor, tape measure, string (mason line), plumb bob. To practice calibration on this trainer, the following conditions are required: Conditions Required Animation Link Allow 20 feet (6 metres) around the EV-360 during this assignment. Click Here: OR Scan QR Code : Front CAMERA Calibration, Side and Range Limits 1. Correct the CAMERA vertical angle to within 3º of perpendicular to the train- er’s top surface. Use a protractor. 2. Front CAMERA Calibration. 2.1 Align the CAMERA to the MIDDLE graduated mark on its mounting base. - Place the flat side of the protractor against the face of the CAMERA and align the string to the 90º mark, then extend the string out forward 20’ (6 m) and make a mark on the floor. A plumb bob may be needed to accu- rately mark floor (see animations included). 3. Find the Front CAMERA side limits. 3.1 With the flat side of the protractor still against the face of the CAMERA and being careful not to move it, pulling the string over the top of the protractor, hand the other end of the string to a second student (see animations included). 3.2 While watching the EV-360 tablet display (or projected view on larger display), have the student holding the string walk from the left side into the “lane” to find where the CAMERA just starts to catch this movement as a “target” (see animations included). 3.3 Using the same color chalk, mark a line from the CAMERA center out to this intersection point at the lane marker and label floor as LEFT CAMERA LIMIT. A plumb bob may be need- ed to accurately mark floor. https://www.youtube.com/watch?v=y5bnxFeunHY&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=7 91-EV-360 Student Assignment - SA-12 consulab.com info@consulab.com 32 Conditions Required Animation Link 3.4 Record the L/S protracted angle: Click Here: OR Scan QR Code : 3.5 Again, with the flat side of the protractor still against the face of the CAMERA and being careful not to move the sensor, pulling the string over the top of the protractor, hand the other end of the string to a second student (see animations included). 3.6 While watching the EV-360 tablet display (or projected view on larger display), have the student holding the string walk from the right side into the “lane” to find where the CAMERA just starts to catch this movement as a “target” (see animations included). 3.7 Using the same color chalk, mark a line from the CAMERA center out to this intersection point at the lane marker and label floor as RIGHT CAMERA LIMIT. A plumb bob may be needed to accurately mark floor. 3.8 Record the R/S protracted angle: 4. Find the Front CAMERA range limit. 4.1 Test the CAMERA object ID range by walking directly away from the CAMERA view until there is no longer an ID of the object. 4.2 Using the same color chalk, mark the floor as CAMERA RANGE LIMIT. 4.3 Using the same chalk, finish marking off the entire CAMERA detection area on the floor (will look like a triangle) (LEFT LIMIT, detection angle, range/distance, RIGHT LIMIT). 4.4 Record the entire CAMERA detection area protracted angle: 4.5 Record CAMERA chalk color used: 5. OPTIONAL: Move CAMERA to different marks on the base of sensor (each base mark is 30º) and repeat exercise to observe movement of the CAMERA detection area location. https://www.youtube.com/watch?v=y5bnxFeunHY&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=7 91-EV-360 Student Assignment - SA-12 Answers consulab.com info@consulab.com 33 SA-12 Front Camera Answers 1. How large is the area located that the Camera is designed to warn drivers? Challenge students to calculate this. 2. What other technology is commonly used in Camera detection? In addition to object detection, object identification is critical in the progression to autonomy. The object ID also gets better with continued use due to machine learning (AI). 3. Where can a Camera(s) be physically located on a vehicle? In the front grille, both side mirrors, on top of the vehicle, rear tailgate, in front of the rear view mirror and some face the drivers eyes from the rear view mirror also. 91-EV-360 Student Assignment - SA-13 consulab.com info@consulab.com 34 SA-13 Understanding Ultrasonic Proximity Sensor Calibration NOTE: Initial EV-360 SA-9−14 Set-Up must be performed FIRST (See EV-360 Set-up for Student Assignments). This exercise is step thirteen in understanding the importance of accurate ADAS sensor calibration and how incorrect calibration can affect system operation. Using the EV-360 trainer, open the Ultrasonic/Sonar mode on the tablet and follow instructions below and answer the questions at the end of the assignment. Additional equipment needed: Masking tape, color chalk, protractor, tape measure, string (mason line), plumb bob. To practice calibration on this trainer, the following conditions are required: Conditions Required Animation Link Allow 20 feet (6 metres) around the EV-360 during this assignment. Click Here: OR Scan QR Code : Ultrasonic Proximity Sensor Entry Points, Exit Points and Range Limits 1. Find each Ultrasonic Proximity Sensor Entry Point. 1.1 Looking at the EV-360 tablet display (or projected view on larger display) while walking around the EV-360, find where each PROXIMITY SENSOR sees a “target” coming into view. 1.2 Using the same color chalk, mark a line from the PROXIMITY SENSOR center out to this intersection point at the lane marker and label as SONIC R/S LIMIT. 2. Find each Ultrasonic Proximity Sensor Exit Point. 2.1 Looking at the EV-360 tablet display (or projected view on larger display) continue walking around the EV-360. 2.2 Find where each PROXIMITY SENSOR loses a “target” as it exits from view. 2.3 Using the same color chalk, mark a line from the PROXIMITY SENSOR center out to this intersection point at the lane marker and label as SONIC L/S LIMIT. 3. Find each Ultrasonic Proximity Sensor Range Limit. 3.1 While looking at the EV-360 tablet display (or projected view on larger display), test the PROXIMITY SENSOR object range by walking directly away from the sensor until target is lost (range color turns green). 3.2 Using the same color chalk, mark the floor as SONIC DISTANCE LIMIT. 3.3 Using the same color chalk, finish marking off all four PROXIMITY SENSOR detection areas on the floor (L/S LIMIT, detection angle, range/distance, R/S LIMIT). 3.4 Record each Ultrasonic sensors detection area protracted angle: LR = LF = RR = RF = 3.5 Record PROXIMITY SENSOR chalk color used: . https://www.youtube.com/watch?v=Sy4ks7QsJZ8&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=8 91-EV-360 Student Assignment - SA-13 Answers consulab.com info@consulab.com 35 SA-13 Ultrasoninc Proximity Sensor Answers 1. How large is the area located that these sensors are designed to warn drivers? Challenge students to calculate this. 2. What other technology is commonly used in Ultrasonic detection? Blind spot detectors, rear, and front facing cameras. 3. Where are the proximity sensors physically located on a vehicle? Generally, in the front and rear bumper corners. 4. What are these sensors primarily used for? Short range sensing of low speed proximity to objects, for parking and cross traffic alert. 5. How could these sensors get out of calibration? An impact in the immediate area, either obvious or unknown, like a parking lot bump. 91-EV-360 Student Assignment - SA-14 consulab.com info@consulab.com 36 SA-14 Understanding Rear Camera Calibration NOTE: Initial EV-360 SA-9−14 Set-Up must be performed FIRST (See EV-360 Set-up for Student Assignments). This exercise is step forteen in understanding the importance of accurate ADAS sensor calibration and how incorrect calibration can affect system operation. Using the EV-360 trainer, open the Rear Camera mode on the tablet, shift to REVERSE, then follow instructions below and answer the questions at the end of the assignment. Additional equipment needed: Masking tape, color chalk, protractor, tape measure, string (mason line), plumb bob. To practice calibration on this trainer, the following conditions are required: Conditions Required Animation Link Allow 20 feet (6 metres) around the EV-360 during this assignment. Click Here: OR Scan QR Code : Rear CAMERA Calibration, Side and Range Limits 1. Correct the CAMERA vertical angle to within 3º of perpendicular to the train- er’s top surface. Use a protractor. 2. Rear CAMERA Calibration. 2.1 Align the CAMERA to the MIDDLE graduated mark on its mounting base. - Place the flat side of the protractor against the face of the CAMERA and align the string to the 90º mark, then extend the string out forward 20’ (6 m) and make a mark on the floor. A plumb bob may be needed to accu- rately mark floor (see animations included). 3. Find the Rear CAMERA side limits. 3.1 With the flat side of the protractor still against the face of the CAMERA and being careful not to move it, pulling the string over the top of the protractor, hand the other end of the string to a second student (see animations included). 3.2 While watching the EV-360 tablet display (or projected view on larger display), have the student holding the string walk from the left side into the “lane” to find where the CAMERA just starts to catch this movement as a “target” (see animations included). 3.3 Using the same color chalk, mark a line from the CAMERA center out to this intersection point at the lane marker and label floor as LEFT CAMERA LIMIT. A plumb bob may be need- ed to accurately mark floor. https://www.youtube.com/watch?v=wXrWg-7TX38&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=9 91-EV-360 Student Assignment - SA-14 consulab.com info@consulab.com 37 Conditions Required Animation Link 3.4 Record the L/S protracted angle: Click Here: OR Scan QR Code : 3.5 Again, with the flat side of the protractor still against the face of the CAMERA and being careful not to move the sensor, pulling the string over the top of the protractor, hand the other end of the string to a second student (see animations included). 3.6 While watching the EV-360 tablet display (or projected view on larger display), have the student holding the string walk from the right side into the “lane” to find where the CAMERA just starts to catch this movement as a “target” (see animations included). 3.7 Using the same color chalk, mark a line from the CAMERA center out to this intersection point at the lane marker and label floor as RIGHT CAMERA LIMIT. A plumb bob may be needed to accurately mark floor. 3.8 Record the R/S protracted angle: 4. Find the Rear CAMERA range limit. 4.1 Test the CAMERA object ID range by walking directly away from the CAMERA view until there is no longer an ID of the object. 4.2 Using the same color chalk, mark the floor as CAMERA RANGE LIMIT. 4.3 Using the same chalk, finish marking off the entire CAMERA detection area on the floor (will look like a triangle) (LEFT LIMIT, detection angle, range/distance, RIGHT LIMIT). 4.4 Record the entire CAMERA detection area protracted angle: 4.5 Record CAMERA chalk color used: 5. OPTIONAL: Move CAMERA to different marks on the base of sensor (each base mark is 30º) and repeat exercise to observe movement of the CAMERA detection area location. https://www.youtube.com/watch?v=wXrWg-7TX38&list=PLTmfHl09PiAargrVjv4wpFho7Zejqk8z4&index=9 91-EV-360 Student Assignment - SA-14 Answers consulab.com info@consulab.com 38 SA-14 Rear Camera Answers 1. How large is the area located that the Camera is designed to warn drivers? Challenge students to calculate this. 2. What other technology is commonly used in Camera detection? The rear view camera has a projected path image imposed onto the view that follows the steering wheel so the driver can see an estimated path in reverse. 3. Where can a Camera(s) be physically located on a vehicle? On top of the vehicle, rear tailgate, license plate holder area. 91-EV-360 Student Assignment - SA-15 Answers consulab.com info@consulab.com 39 SA-15 ADAS Pre-Calibration - Answers This exercise is step fifteen in understanding why recommended industry standard pre-calibration requirements have to be correct before any ADAS calibration can be accurately preformed. Using service information, select two late model vehicles that incorporate advanced driver assist systems, then research what preparations are required pre-calibration and fill in the chart below: Calibration Process Actual Vehicle Conditions Recommended List all calibration preparations rec- ommended BEFORE attempting to calibrate a vehicle’s ADAS sensors: Pre-scan Alignment in spec Tire pressure corrected Ride height verified Center steering wheel Check all fluid levels Gas tank full Spare tire with tools in vehicle (if provided) No person in the vehicle Ensure vehicle carries no extra load/weight Headlights OFF and doors closed Clean windshield and sensor lenses No motion (doors opening or closing, wind, touching the vehicle during cali- bration) Level vehicle Find center line of vehicle Calibrate Post Scan Road test Final Scan 91-EV-360 Student Assignment - SA-16 Answers consulab.com info@consulab.com 40 SA-16 ADAS Vehicle Specific - Answers NOTE: it is recommended to have an advanced student gather the answers to this assignment for the instructor so as to get an example for future demonstrations in class. This exercise is step sixteen in understanding the variety of ADAS components used in specific vehicles. Using the EV- 360 trainer and additional service information, select any late model vehicle which incorporates advanced drivers assist systems, then research and fill in the chart below as best possible: Vehicle Selected: ADAS Input Component Primary DRIVER ASSIST that depends on this sensor Location of sensors Number of sensors LiDAR Front RADAR Rear RADAR Ultrasonic Infrared Blind Spot Radar Blind Spot Camera Front Camera Rear Camera 400-6330 Zéphirin-Paquet St. Québec QC G2C 0M3 Canada © ConsuLab Educatech Inc, 2025. All rights reserved. Purpose and Function ADAS Sensor Theory Basic Operation Educational Advantages Main Features Explanatory Animation SA-1 Six Levels of Autonomous Driving — Answers SA-2 ADAS Acronyms − Answers SA-3 ADAS Components − Answers SA-4 ADAS Theory Exploration - Answers SA-5 ADAS Sensor Fusion - Answers SA-6 ADAS Object Identification Exploration - Answers SA-7 ADAS Sensor Accuracy - Answers SA-8 Understanding Steering Angle Calibration - Answers EV-360 Set-up for Student Assignments SA-9 Understanding BSD Calibration SA-10 Understanding Front Facing RADAR Calibration SA-11 Understanding LiDAR Calibration SA-12 Understanding Front Camera Calibration SA-13 Understanding Ultrasonic Proximity Sensor Calibration SA-14 Understanding Rear Camera Calibration SA-15 ADAS Pre-Calibration - Answers SA-16 ADAS Vehicle Specific - Answers
