Engine mechanical diagnosis trainer

Have you ever wanted a running engine with repeatable mechanical faults that all your students could diagnose? Would you like an engine system that has internal mechanical faults not requiring you to reinsert and repair them after each student use? The EM-141S-TY01 does exactly that. It was designed for the purposes of teaching students mechanical engine component failure diagnosis and is a real time-saver allowing instructors to instantly provide a “turn-key” engine mechanical fault diagnosis package.

Technical Details

Specification
Product code EM-141S-TY01_053234

Educational Advantages

Saves significant instructor setup time for creating common engine mechanical faults and learning exercises

Student assignments available

Engine systems respond to inserted faults with real world symptoms, OEM DTC’s, scan tool data-stream of changes and Check Engine Light operation

Repeatable faults allow multiple students to identify and demonstrate all required diagnostic tests required to identify cause (Prevents students from “memorizing” the faults. They would be required to perform the required testing)

Installed mechanical faults cause compression, cylinder leak down, head gaskets and engine timing negative operational issues

Features

Recycled engine, transmission and complete assembly of components

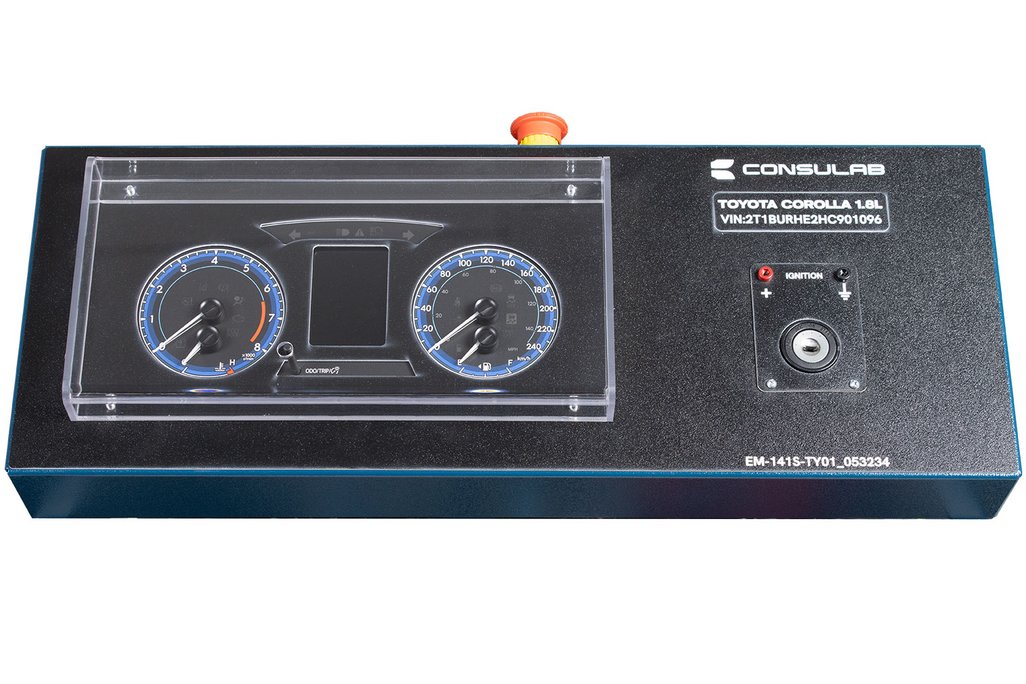

A fully operational engine that starts/runs with OEM instrument panel

Three “permanent” inserted industry common mechanical faults and one defective component fault that can be removed/replaced.

Provides a “real world” running engine that will demonstrate all negative operational symptoms based on the faults.

Functional Electronic Throttle Control, Catalytic Converter and Variable Valve Timing systems

Emergency stop button

Customized OEM exhaust system

OEM Fuel Pump Module

OEM power distribution center with circuit protection

All electrical components match OEM wiring schematics and service information

Automatic regulated 12V battery charger with master power disconnect switch

Robust trainer frame and stand with special design features.

Easy removal and installation of radiator

Front motor mount is removable providing access to front engine timing cover

Defective control component that can be replaced with a non-defective unit correcting the fault

Included tool storage tray

Removable safety shields on all rotating components

Additional instructor led engine component R&R (timing chain, etc)

Application

2013-2016 Toyota Corolla North American model 1.8L 2ZR-FE engine with automatic transmission.
