Technical Details
| Specification | |
|---|---|
| Product code | FP-MF102S-H-TSE |

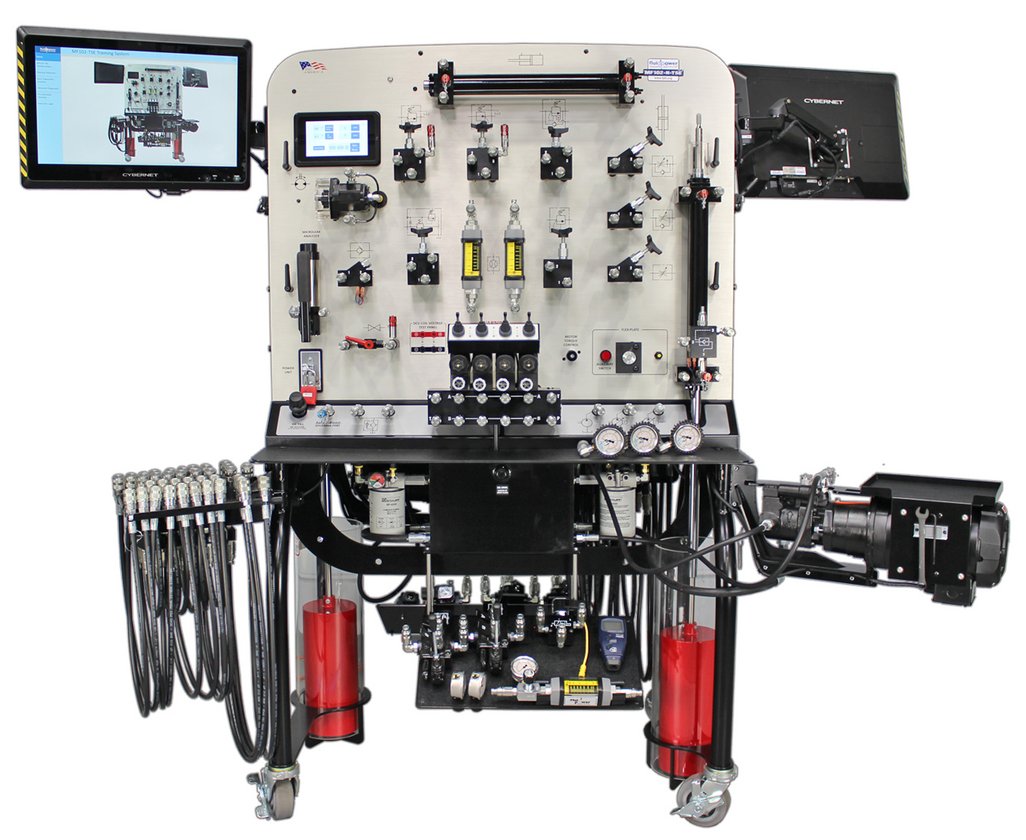

Key Features & Benefits | Automated Electronic Fault Insertion (TSE Exclusive) : A 22″ industrial touchscreen PC introduces faults electronically, using logic patterns based on real component wear and machine behavior, no manual interaction required. Realistic, High-Level Diagnostic Training : The system creates scenarios involving pressure drops, pump starvation, spool misalignment, internal leakage, flow imbalance, and actuator irregularities, all observable and measurable. Randomized Fault Patterns Prevent Memorization : The trainer can introduce sequences of faults that challenge students to think critically rather than rely on repetition. Advanced Data Display & Analysis Tools : The touchscreen PC displays live system data, including speed, amps, temperature, timing, and fault-specific diagnostic indicators. Builds on the Full MF102-H + TS Feature Set : Circuit-building, energy transfer, pressure/flow measurement, and manual troubleshooting capabilities are all included, making this the most complete hydraulic training platform in its class. Safe, Repeatable, Instructor-Controlled : Faults can be introduced, escalated, repeated, and cleared instantly, providing a controlled learning environment for advanced troubleshooting. |
|---|---|
Specifications | Electronic Troubleshooting System (TSE Exclusive) : Integrated 22″ touchscreen PC / Automated electronic fault insertion / Faults based on real wear-pattern data / Randomized fault sequencing / Software-driven diagnostic interface / Real-time troubleshooting assessments Hydraulic Power : Axial piston pump, 1.0 GPM, pressure-compensated / Adjustable compensator & adjustable flow / 4.5-gallon (17 L) hydraulic reservoir / 10-micron filtration with bypass gauge Electric Drive : TEFC electric motor, 115V, single-phase / 1750 RPM, C-face mount / Lockout/tagout safety switch / Overload protection with manual reset Directional Control Valves (7 total) : DO3 tandem-center solenoid valve w/ flow control / DO3 closed-center solenoid valves w. dual flow controls / DO3 float-center solenoid valve w. flow control / Mobile cylinder-spool valve w. relief / Mobile motor-spool valve w/ relief / (1) 2-position, 3-way solenoid cartridge valve Pressure & Flow Controls : Pilot-operated pressure relief valve / Direct-acting pressure relief valve / Sequence valve / Pressure-reducing valve / Counterbalance valve (reverse-flow check) / Needle valve / Flow control valve / Pressure-compensated flow control valve (bypass type) / Standard check valve / Pilot-operated check valve w/ manual override Actuators : 14″ single-rod double-acting cylinder / 14″ double-rod cylinder with load engagement mechanism / Bi-directional gear-type hydraulic motor
Instrumentation Displayed on 22″ touchscreen PC: Tachometer / Ammeter / Oil temperature / Ambient temperature / Stopwatch / Fault indicators & diagnostic data Physical instruments: (2) Flow meters: 0–2.0 GPM / (3) Pressure gauges: 0–1500 PSI, glycerin-filled Load Simulation : 100 lb (45 kg) enclosed load / Mechanical engage - disengage latch / Transparent safety enclosure Hoses & Connections : Swing-out, stow-away hose caddy / Per side: (4) × 60″ hoses, (8) × 46″ hoses, (6) × 26″ hoses / SAE 100-R1 hoses with flat-face quick-connects / (8) T-fittings per side / Pressure/leak test pump with quick-connect Dimensions & Shipping : Footprint: 30″ D × 48″ W × 77″ H / Shipping weight: 900–1200 lbs / Shipping crate: 84″ × 54″ × 42″ |
Curriculum | Overview: The MF102-H-TSE curriculum prepares students for advanced diagnostic environments by using automated electronic faults and real-time system data. Learners evaluate performance, identify patterns, and diagnose complex failure modes. Topics Covered: Electronic fault insertion & logic patterns / Data-driven troubleshooting / Tachometer, temperature, and amperage analysis / Wear-based failure signatures / High-level fault recognition / System evaluation using sensor feedback / Diagnostic reasoning and validation |
