Basic hydraulics - single

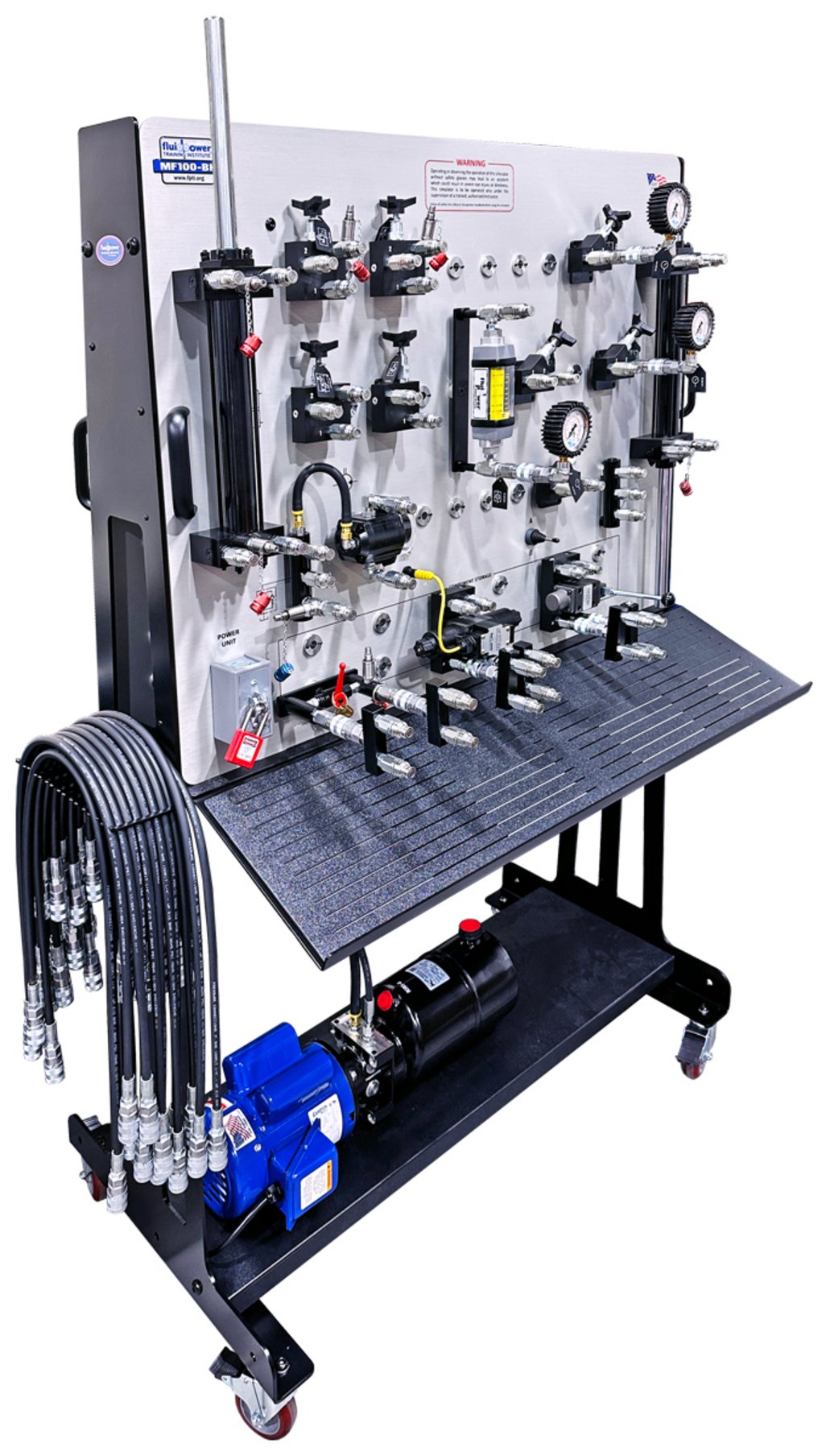

The FP-MF100S-BH simulator is designed to help students learn all aspects of hydraulics that includes : basic hydraulic principles and laws, how hydraulic components work, how hydraulic components interact, hydraulic symbols, and problem solving skills. The trainer features a fully functional single-sided basic hydraulic system with OEM components.

Technical Details

Product code FP-MF100S-BH

Educational Advantages

Can be configured with hydraulic components of your choice.

Designed to help students learn all aspects of hydraulics that include: Basic hydraulic principles and laws; How hydraulic components work; How hydraulic components interact; Hydraulic symbols; Problem solving skills.

Components are needed to complete the experiments in manual

One (1) Frame assembly

One (1) Single workstation panel

One (1) Power supply unit

One (1) Directional control valve — open-center, handlever-operated , 3-position, 4-way

One (1) Directional control valve — tandem-center, solenoid-operated , 3-position, 4-way

One (1) Direct-operated relief valve

One (1) Pilot-operated relief valve

One (1) Sequence valve

One (1) Pressure reducing valve

One (1) Needle valve

One (1) Flow control valve

One (1) Pressure-compensated flow control valve (restrictor-type)

One (1) Check valve

One (1) Hydraulic cylinder — double-acting, single rod

One (1) Hydraulic cylinder — double-acting, double rod

One (1) Hydraulic motor — gear type

Six (6) T-connectors

One (1) Isolator valve — ball valve

One (1) Pressure manifold

One (1) Return manifold

Three (3) Pressure gauges — 1000 psi (69 bar)

One (1) Flow meter — 2.0 gmp (7.57 lpm)

Six (6) Hydraulic hoses — 24 in (610 mm) length

Twelve (12) Hydraulic hoses — 40 in (1016 mm) length

One (1) Student workbook

One (1) Instructor manual

One (1) Classroom CD-ROM module
