Cutaway pilot-operated pressure relief valve

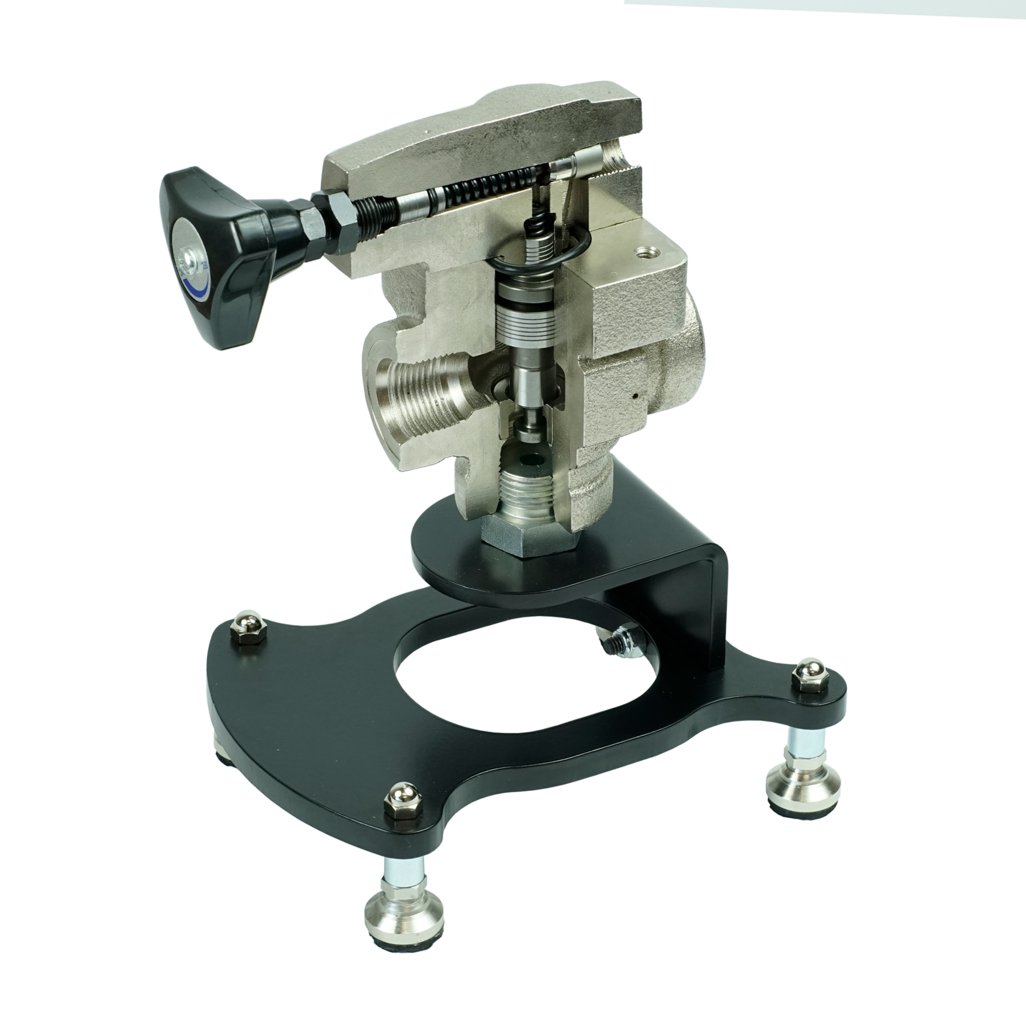

This cutaway reveals both stages of a pilot-operated relief valve, helping students understand the interaction between the pilot section and the main poppet. Because internal flow paths and components are fully exposed, instructors can clearly demonstrate concepts such as cracking pressure, pilot flow, and balanced operation. Essential for teaching advanced pressure control.
