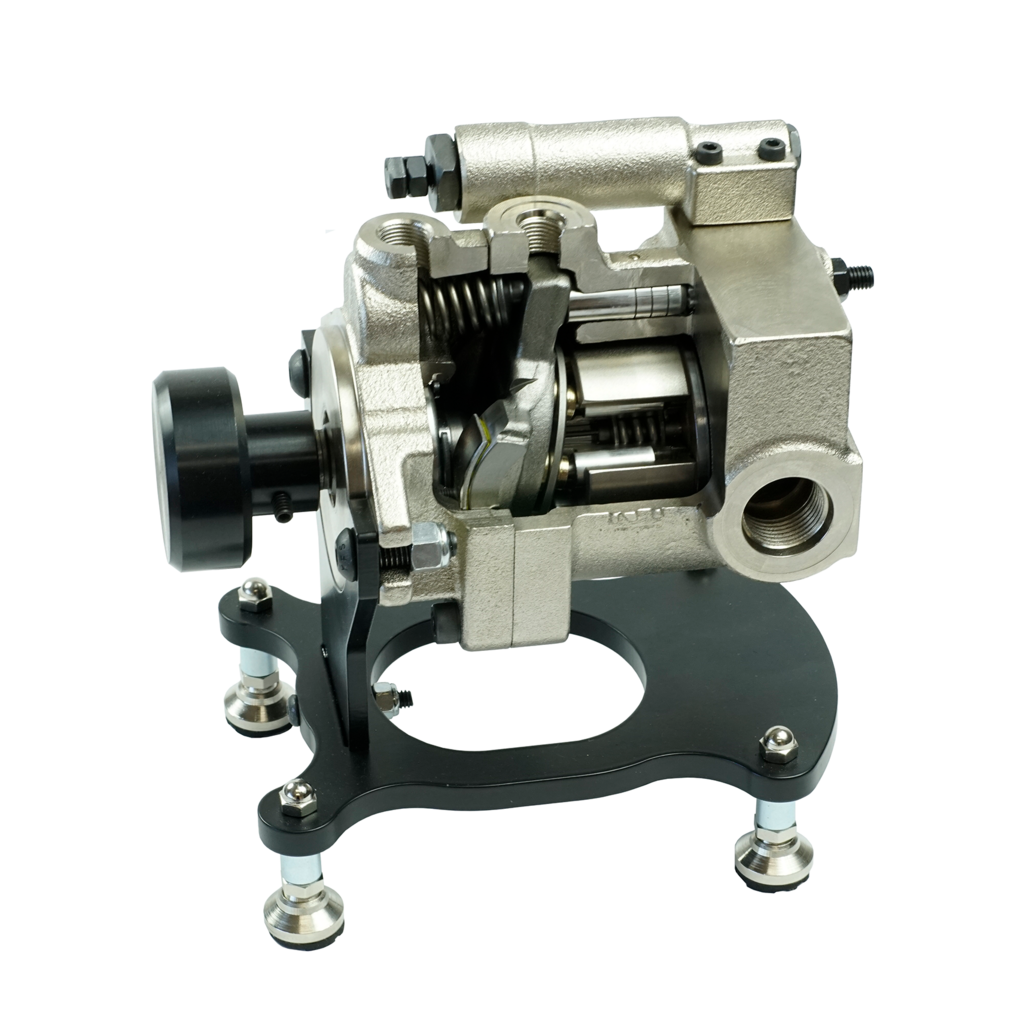

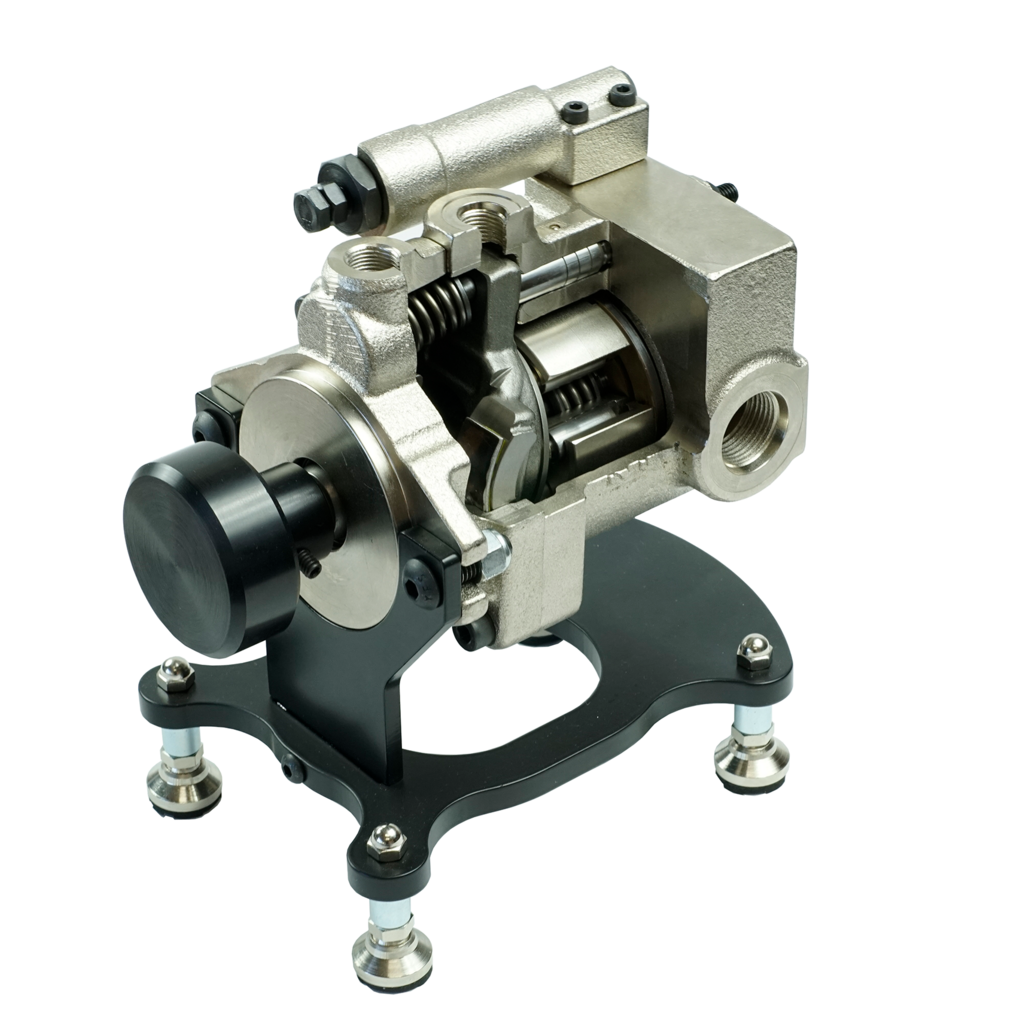

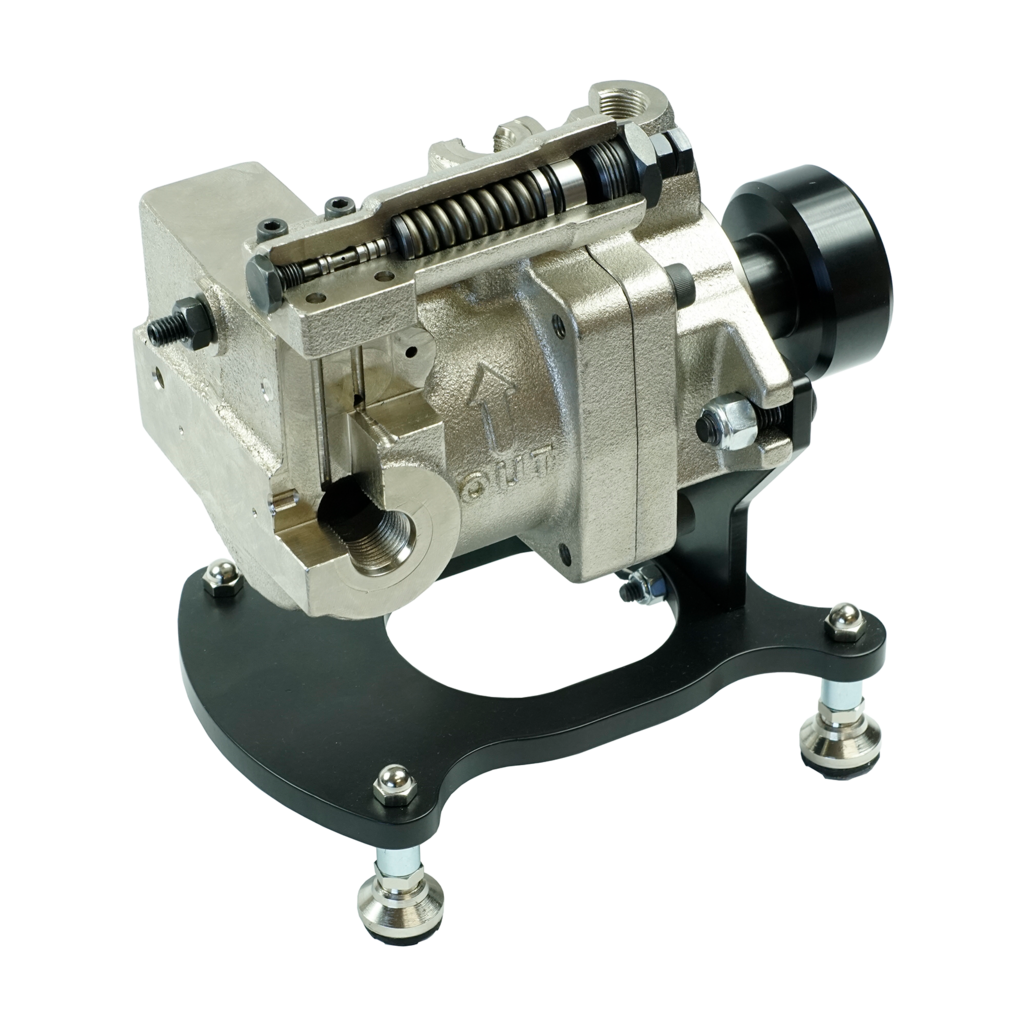

This model exposes the inner workings of a pressure-compensated axial piston pump—including the pump housing, pistons, and complete pressure compensator section. By rotating the pump manually, students see how displacement changes occur and how the compensator manages system pressure. Perfect for illustrating the relationship between pressure control, displacement, and efficiency.
| Specification | |
|---|---|
| Product code | FP-PCP-CM |

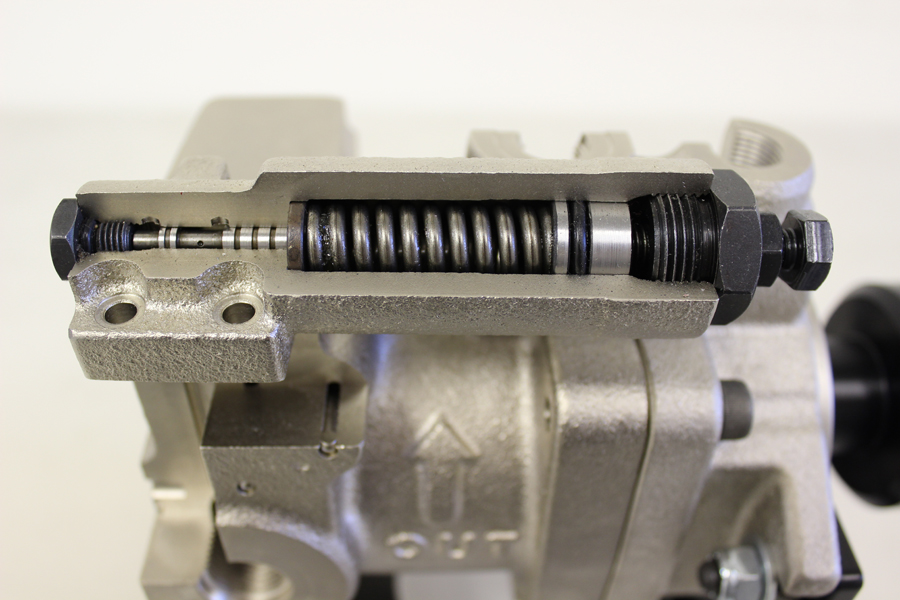

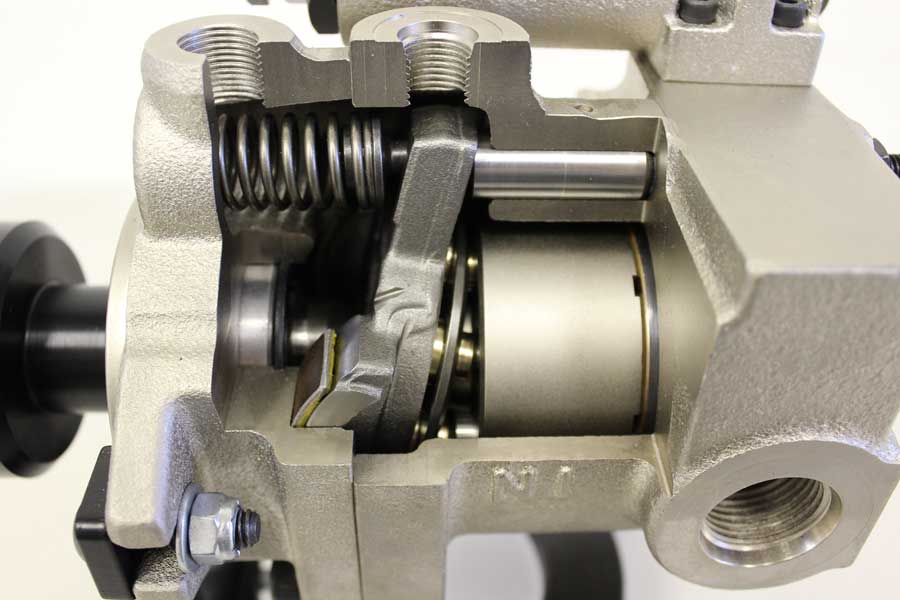

Educational Advantages | The body is cutaway to expose all the internal parts. The barrel is also cutaway to expose the pistons. The pressure compensator is cutaway to show how the compensator works, and also how it communicates with the moveable swashplate. |
|---|
