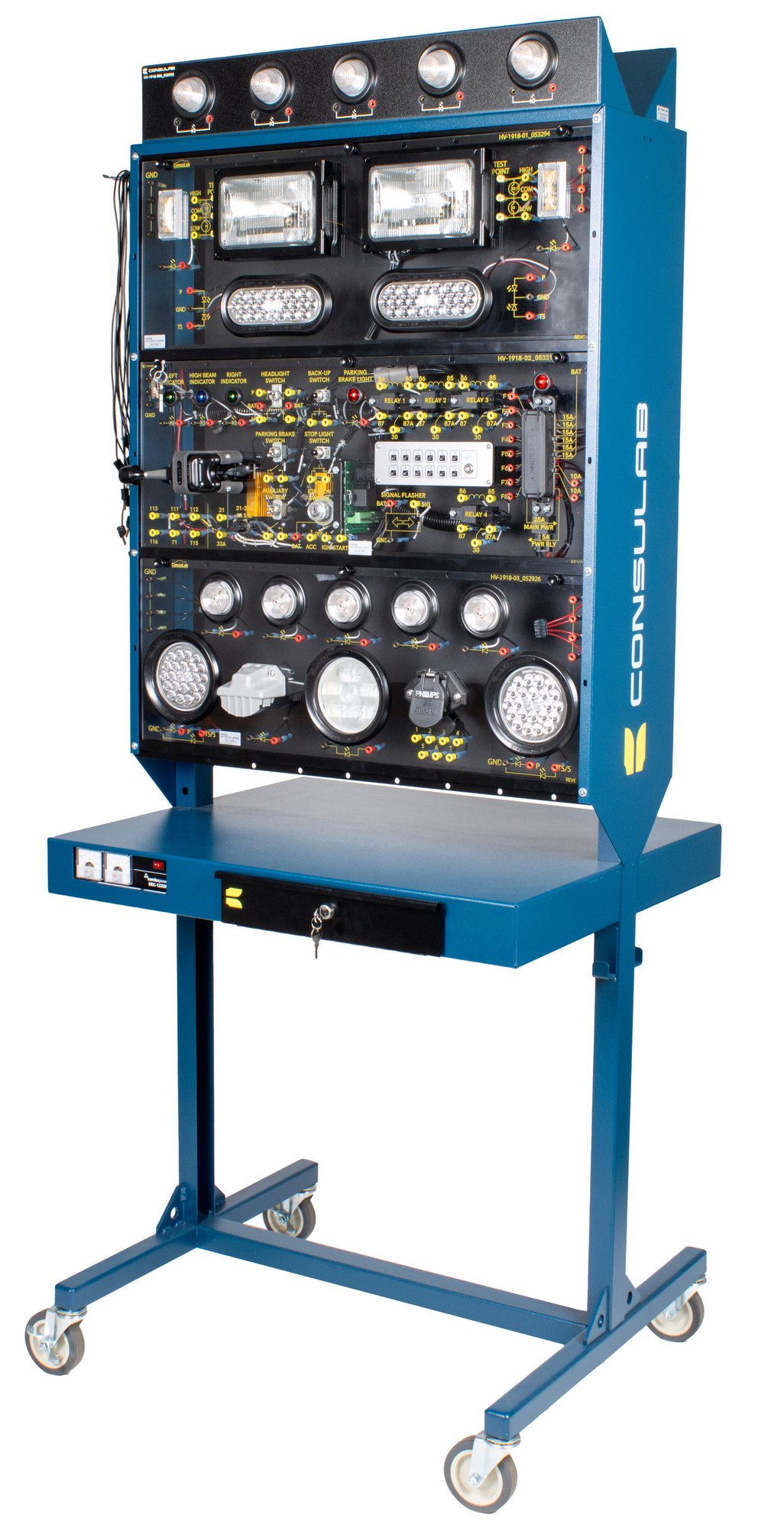

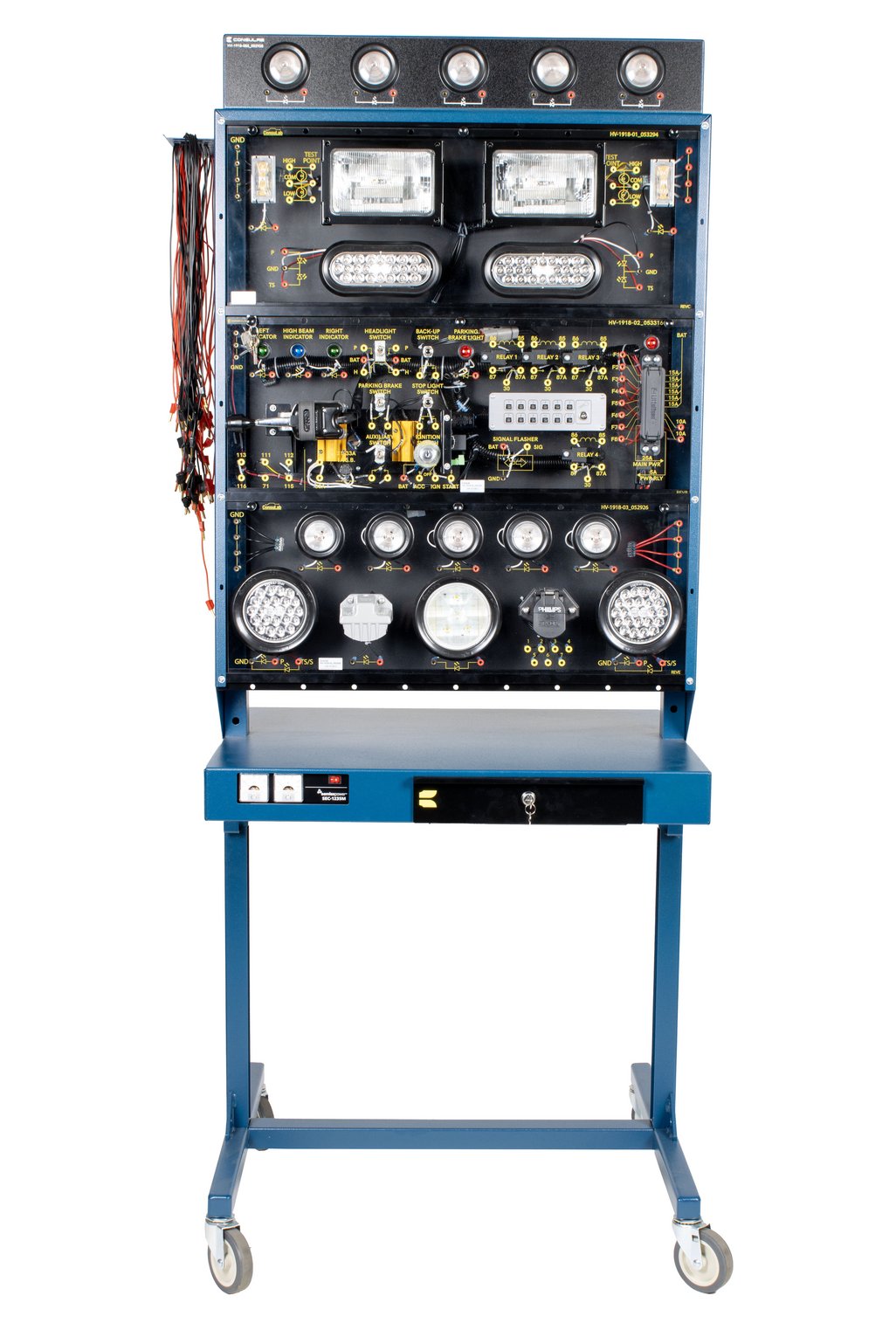

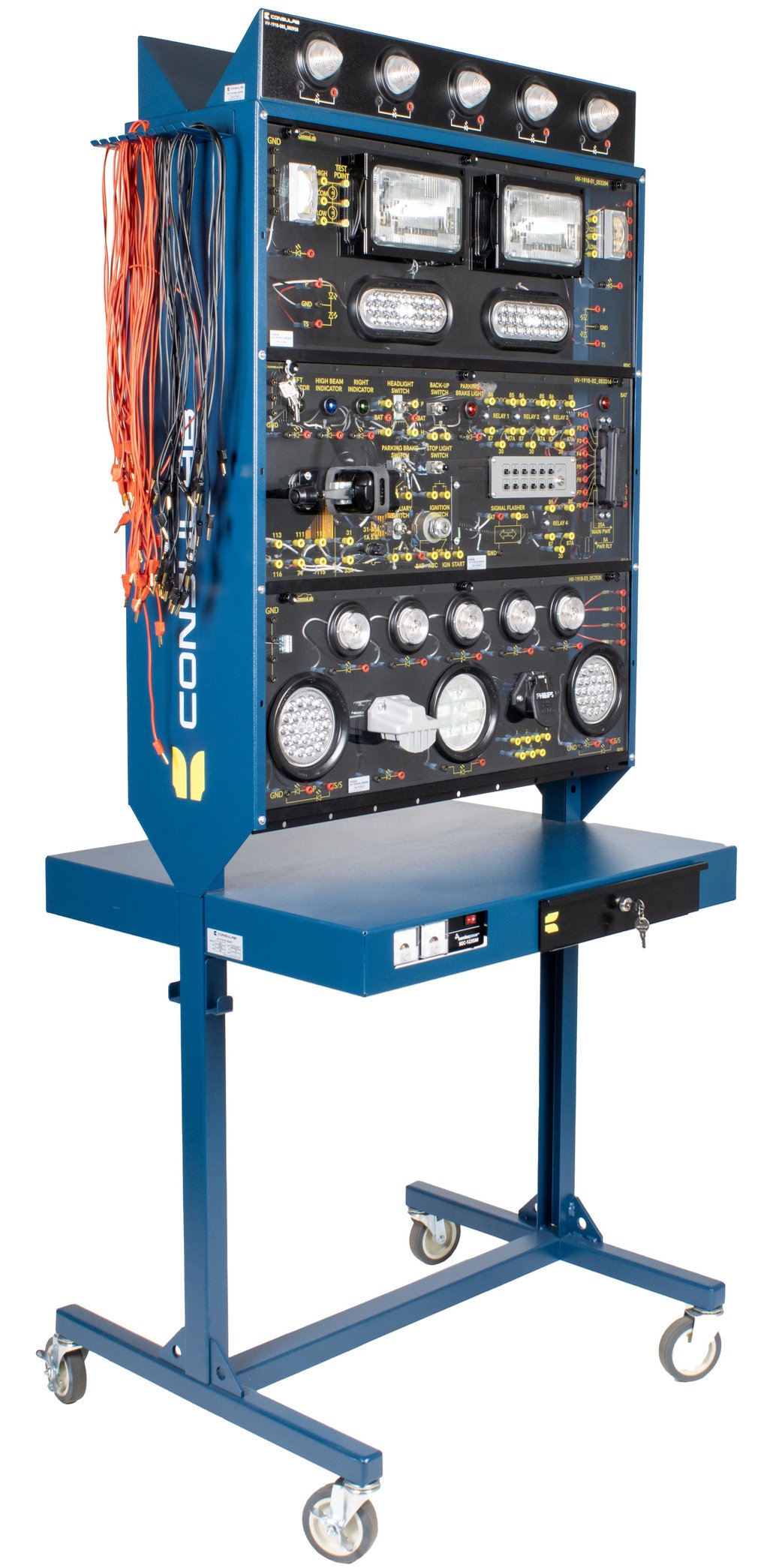

Single sided heavy vehicle lighting system trainer

The ConsuLab HV-1918-2S Single-sided Heavy Vehicle Lighting System Trainer utilizes the “Moduponent®” design feature which allows unlimited expansion capabilities. A Moduponent® consists of a clear Plexiglas sheet with components, wiring and socket test points attached. The Moduponent® is attached to the trainer using disconnect fasteners which allows easy adaptation and configuration for different applications.

Technical Details

Product code HV-1918-2S_053300

Educational Advantages

The HV-1918-2S is a complete heavy vehicle lighting system with front, rear, brake, clearance, turn/hazard and backup lights with a 7 wire connector;

Meets CSA/UL safety requirements;

Most complete heavy vehicle lighting and accessory circuit trainer available;

Modular LED lights (except headlights) that match on-highway truck components;

Built to train up to four students at a time.

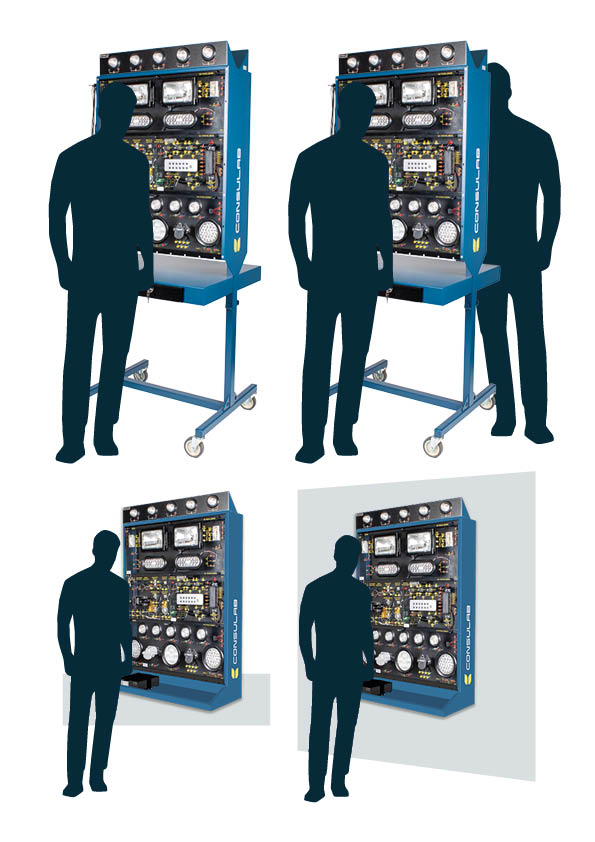

Available single sided or double sided (HV-1918-2D_053301)

Manual fault box with 2 faults for the following Front Lights Moduponent® circuits: Left headlamp ground circuit, Left/right headlamp ground circuits;

Manual fault box with 10 faults for the following Lighting Switch Controls Moduponent® circuits: Headlight switch (2), Signal flasher (2), Backup light switch, Stop light switch, Ignition switch, Right turn signal indicator, Relay No. 3, Relay No. 4.


HV-1918-01_053294 Front Lights Moduponent® (52924) (1)

HV-1918-02_053316 Lighting Switch Controls Moduponent® (52925) (1)

HV-1918-03_052926 Rear Lights Moduponent®(52926) (1)

HV-1918-08S_052928 5-Clearance Lights Kit (1)

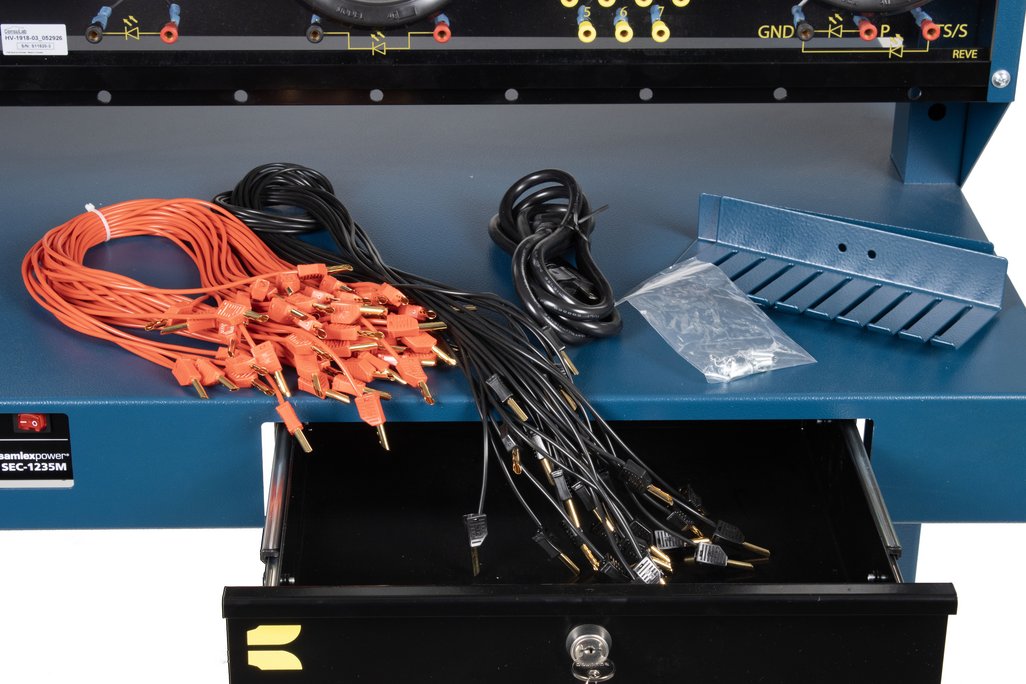

Set of 89 jumper leads

Stand with lockable storage box

12VDC Power Supply
