Technical Details
| Specification | |
|---|---|
| Product code | FP-MF700S-PN |

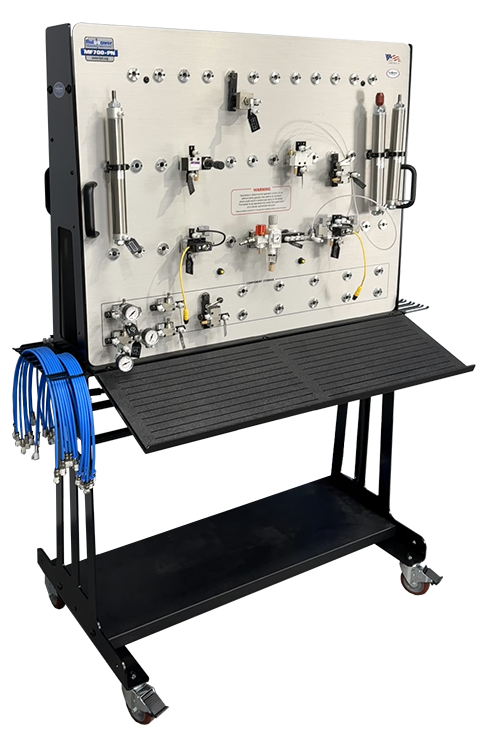

Features | Accepts Almost Any Pneumatic Component : FPTI’s plug-and-play mounting system allows educators to mount FPTI™ components or their own third-party components using simple adaptors. Components can be mounted vertically or horizontally. Designed for All Skill Levels : Supports a full range of training, from foundational pneumatics through electro-pneumatic systems, making it suitable for high schools, technical colleges, and skilled-trade programs. True Industry-Standard Safety : Equipped with real industrial lockout valves so students learn correct, OSHA-compliant safety habits directly on the trainer. Organization & Classroom Efficiency : Built-in component storage slots, hose racks, a lined work surface, and a spacious front tray keep the workspace clean and clutter-free. Ideal for fast teaching cycles. Mobile, Lightweight, and Extremely Durable : The rigid, handcrafted frame includes four swivel casters (with locks) for easy movement and stability. Optional Air Compressor or Use Your Own : Plug into your facility’s air supply or attach an onboard compressor. Integrated filtration, water separation, and regulation ensure clean, dry, safe air. Complete Curriculum Package Included : Comes with a student workbook, instructor answer key, and Parker’s Pneumatic Technology for Industry manual and full-color PowerPoint presentation. |
|---|---|
Specifications | Frame & Structure : Compact, lightweight frame with 4 lockable swivel casters / Rigid steel panel assembly / Lined work surface for books and manuals / Integrated component storage along bottom of panel / Spacious front tray for circuit assembly Plug-and-Play Component Mounting : Unique valve locking design for fast on/off installation / Components labeled with ISO symbols for easy learning / Supports FPTI™ components and third-party components (with adaptor) Included Pneumatic Components : (2) Roller-operated DCVs, 2-position, 3-way / Hand-lever DCV, 2-position, 3-way, spring return / Remote-piloted DCV, 2-position, 4-way, air return / Solenoid-operated DCV, normally closed, 2-position, 3-way / Double-solenoid DCV, 3-position, 4-way, spring-centered / (4) One-way flow control valves / Double-acting cylinder, 10" stroke, 1.5" bore / Single-acting cylinders, 6" stroke, 1.5" bore / Filter/regulator/E-stop with 4-port distribution block / Quick exhaust valve / Pressure gauges: 0–150 PSI, 1.5″ display Hoses & Fittings : (8) hose assemblies, 30″ / 100′ hose roll / (20) hose fittings / (10) tee fittings / Convenient hose storage on both sides of trainer Operating Requirements : Optional onboard air compressor OR connect to facility air supply / Integrated air filter, water separator, and pressure regulator / Standard 115V single-phase electrical connection Course Materials : Pneumatic Technology for Industry manual (Parker Corporation) / Full-color PowerPoint presentation / Student workbook / Instructor Answer CD Shipping : Weight: 405 lbs (184 kg) / Dimensions: 84″ H × 54″ W × 42″ D |
Curriculum | Overview : The MF700-PN curriculum guides learners through pneumatic principles and hands-on circuit construction using true industrial pneumatic hardware. Topis covered : Air preparation and regulation / Pneumatic valve logic / Cylinder control / Flow restriction and speed control / ISO schematic interpretation / Electro-pneumatic integration fundamentals / Troubleshooting air system faults |
