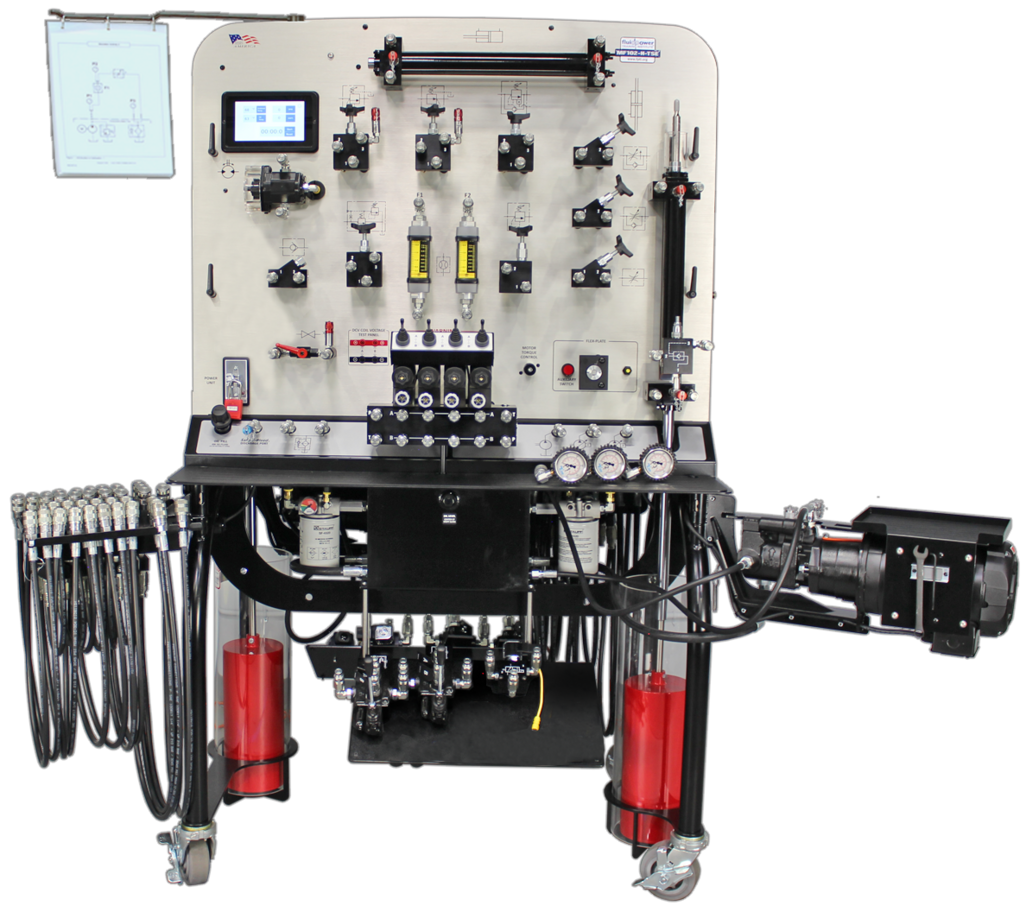

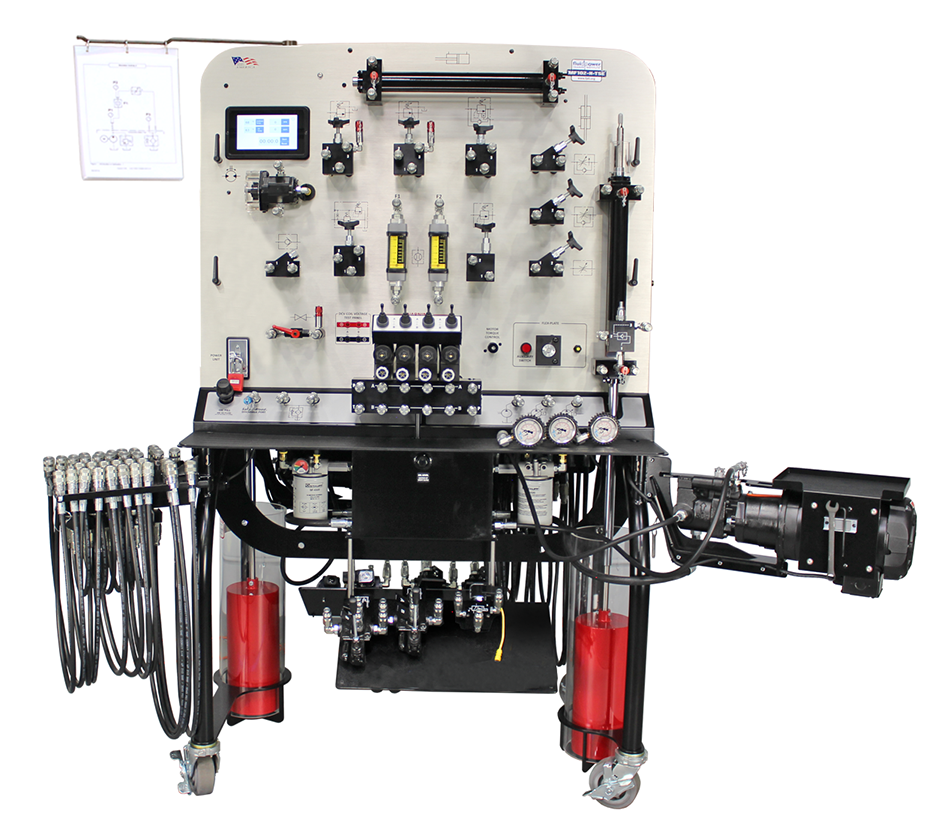

Technical Details
| Specification | |
|---|---|
| Product code | FP-MF102S-H |
Educational Advantages | Allows students to operate the hydraulic system through complete “load-cycles” Allows students to replicate a fully functional industrial or mobile hydraulic system, which is capable of operating with or without load Allows students to operate in fixed displacement, pressurecompensated, and pressure/flow pump environments |
|---|---|
Components Included | Pump (1) - Axial piston-type, variable volume, pressure-compensated; 3.78 Lpm (1.0 GPM); 69 bar (1000 PSI); adjustable pressure compensator; adjustable flow Electric motor (1) - Single-phase; 115V; TEFC; 1750 RPM; C-face; thermal overload protection Electric motor on/off switch (1) - Lockout/tagout mechanism; thermal overload protection with manual reset Hydraulic reservoir (1) - capacity 17 liter (4.5 gallon) Filtration - 10 micron, spin on/off element w/bypass gauge Directional control valves - five (5) total Pilot-operated pressure relief valve (1) w/knob adjustment Direct-operated pressure releif valve (1) w/knob adjustment Sequence valve (1) w/knob adjustment Pressure reducing valve (1) w/knob adjustment Counterbalance valve (1) with internal reverse flow check w/knob adjustment Needle valve (1) w/knob adjustment Flow control valve (1) w/knob adjustment Pressure-compensated flow control valve (1); restrictor-type; reverse flow bypass; w/knob adjustment Check valve (1) w/knob adjustment Pilot-operated check valve (1) w/manual override Cylinder (1) - single-rod; double-acting; 36 cm (14”) stroke Cylinder (1) - double-rod; double-acting; 36 cm (14”) stroke; w/load engage/disengage mechanism Motor (1) - bi-directional; gear-type; w/infinitely variable torque capability Flow meters (2); 7.56 Lpm (0-2.0 GPM) Tachometer (1) - digital-type; panel-mount; hydraulic motor shaft speed Ammeter (1) - analog-type, panel-mount Dual scale temperature gauge (1) - digital-type; panel-mount; upper: oil temperature; lower: ambient temperature Stopwatch (1) - digital, self-retractable Pressure gauges (3) - 103 bar (0-1500 psi); psi and bar scales; 6.35 cm (2.5”); glycerine-filled; Bourdon tube type; w/flat-face type quick-connect/disconnect type valves Load - 45 kg (100 lb); Engage/disengage with mechanical latch. Entire weight is contained within a transparent safety enclosure Hose storage caddy (1) - stow-away/swing-out Hoses (6) - 61 cm (24”); SAE 100-R1; w/flat-face type quick-connect/disconnect type valves Hoses (12) - 102 cm (40”); SAE 100-R1; w/flat-face type quick-connect/disconnect type valves Hose extenders (2) w/flat-face type quick-connect/disconnect type valves T’s (6) w/flat-face type quick-connect/disconnect type valves |
