2018-2014 Corolla 1.8L engine trainer with AC

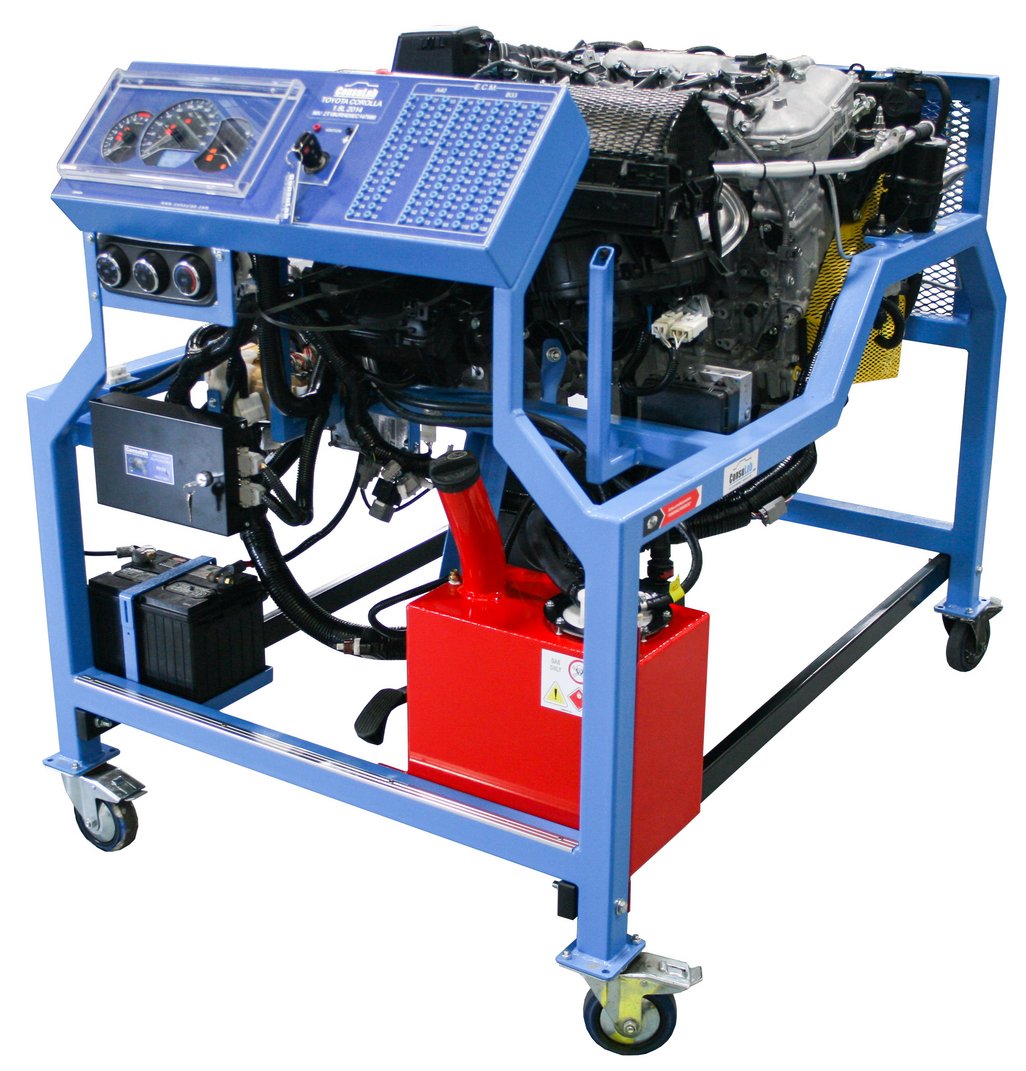

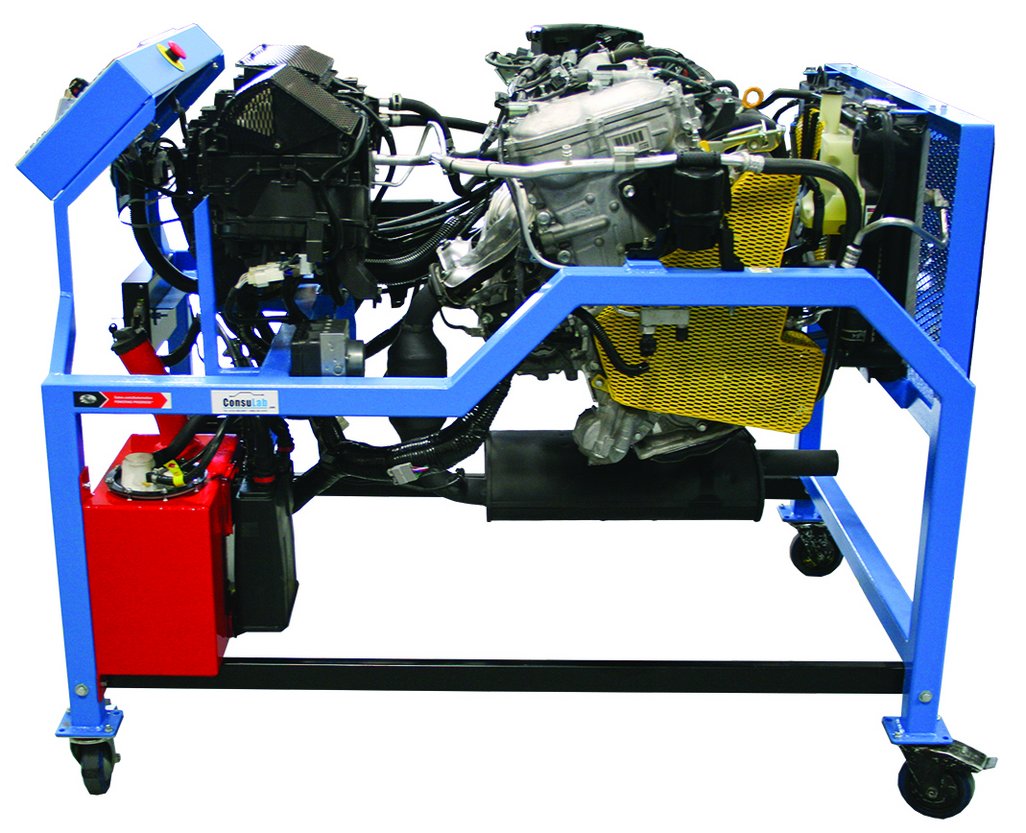

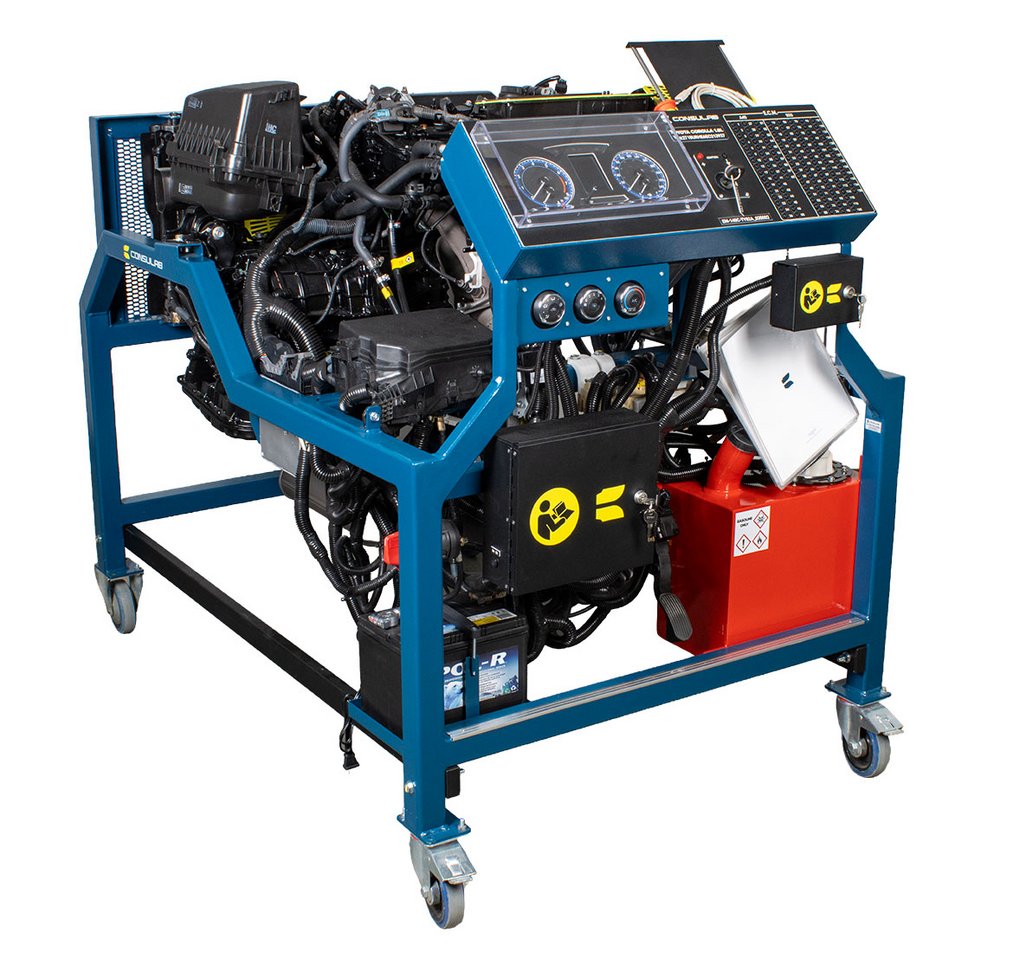

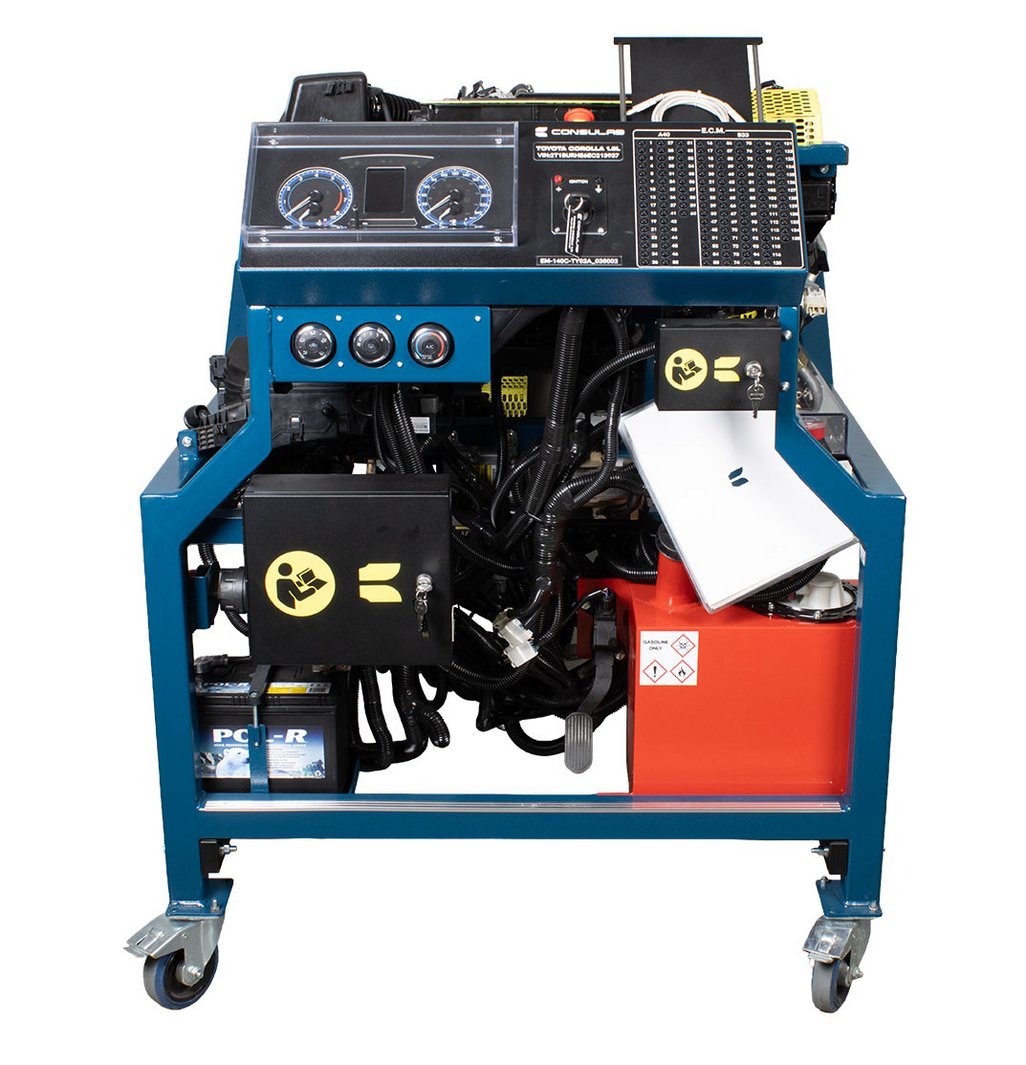

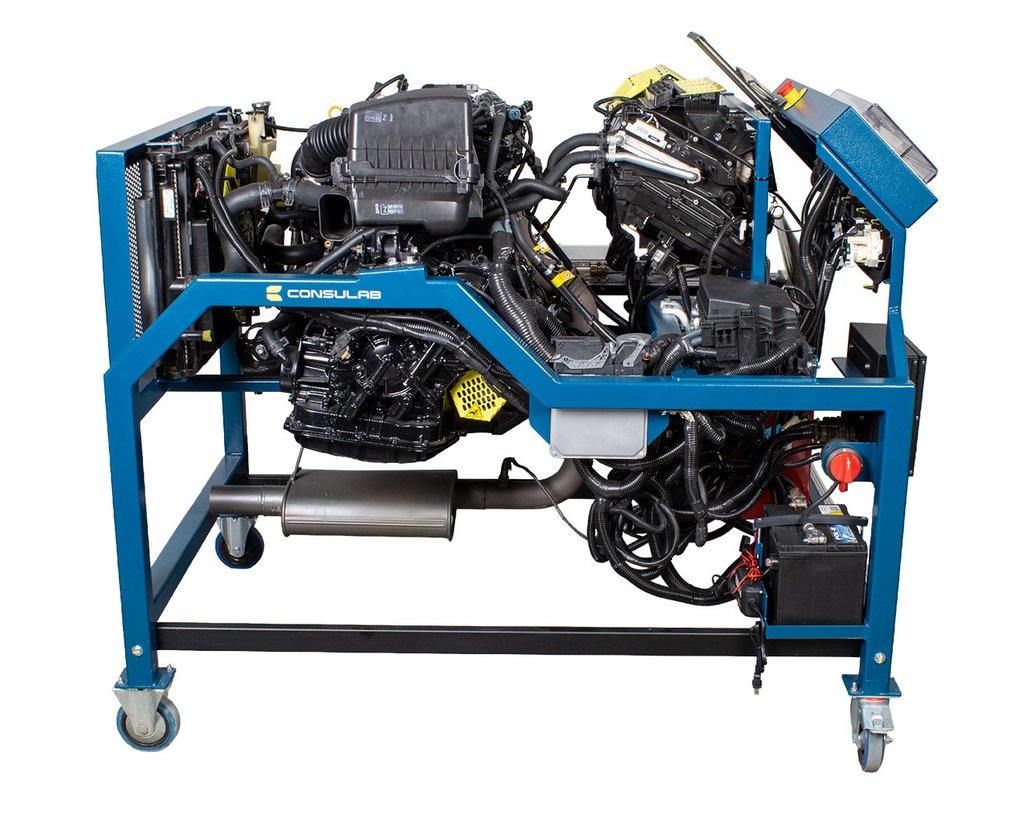

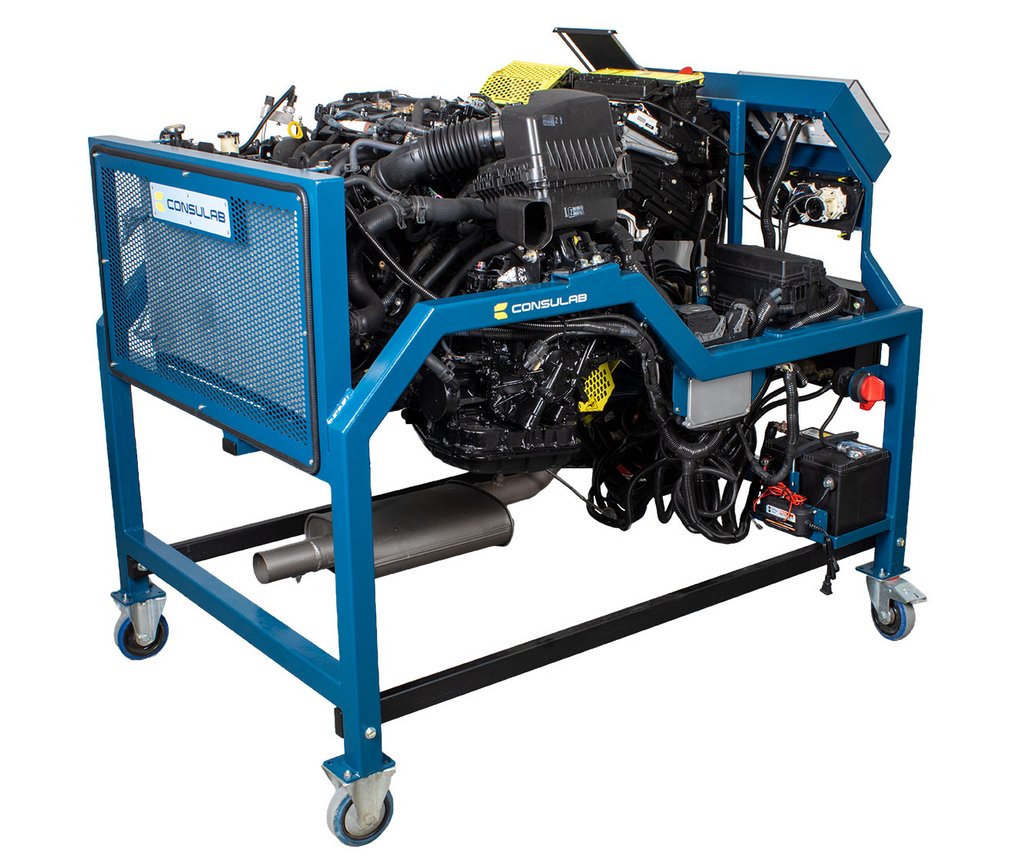

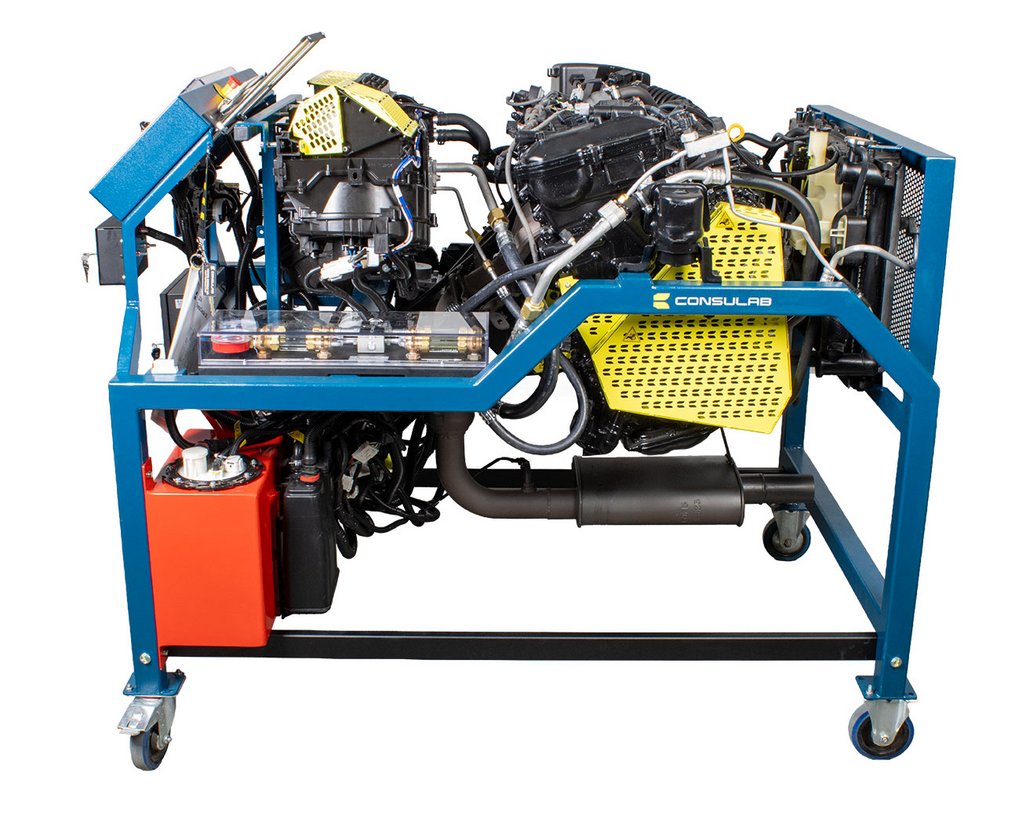

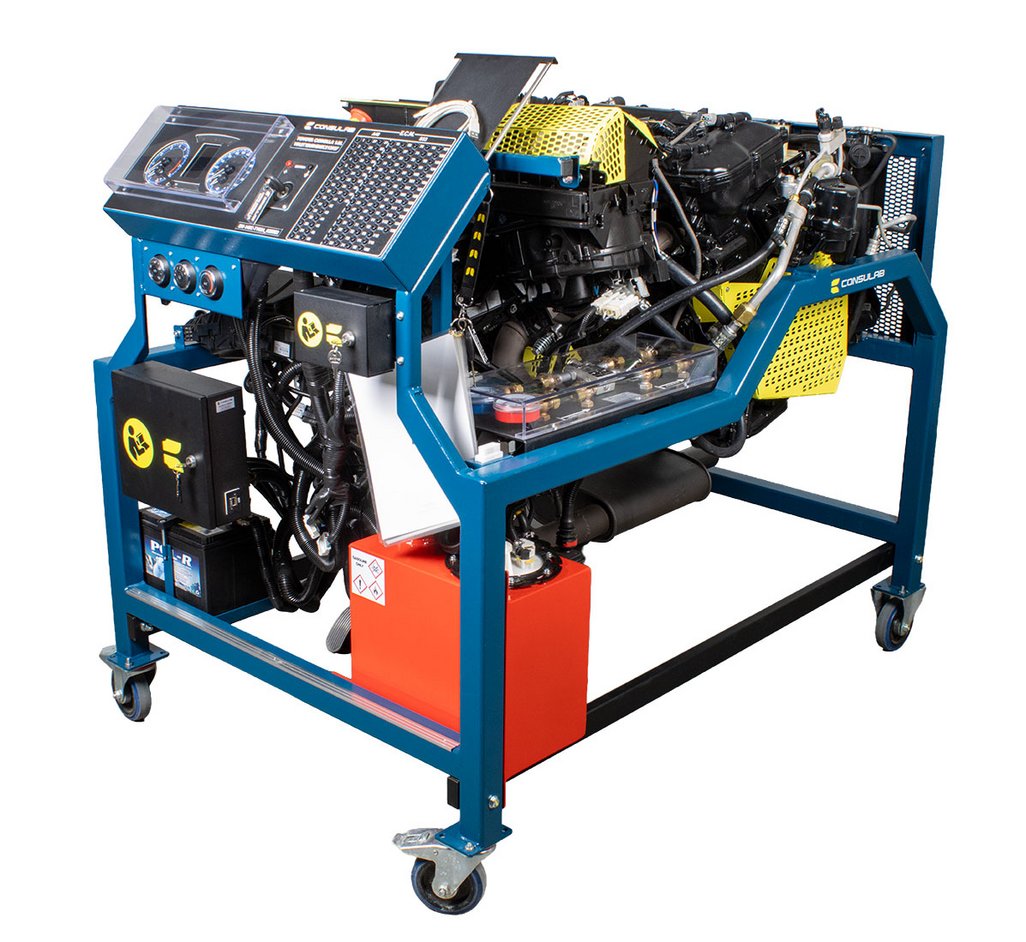

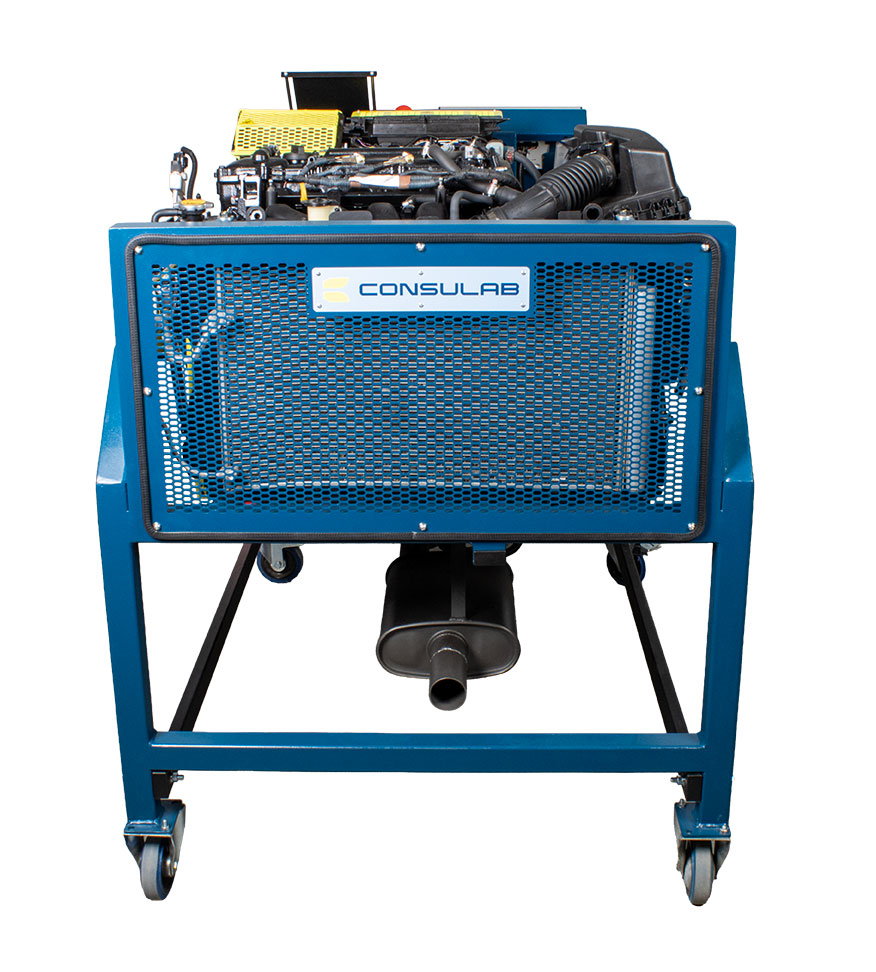

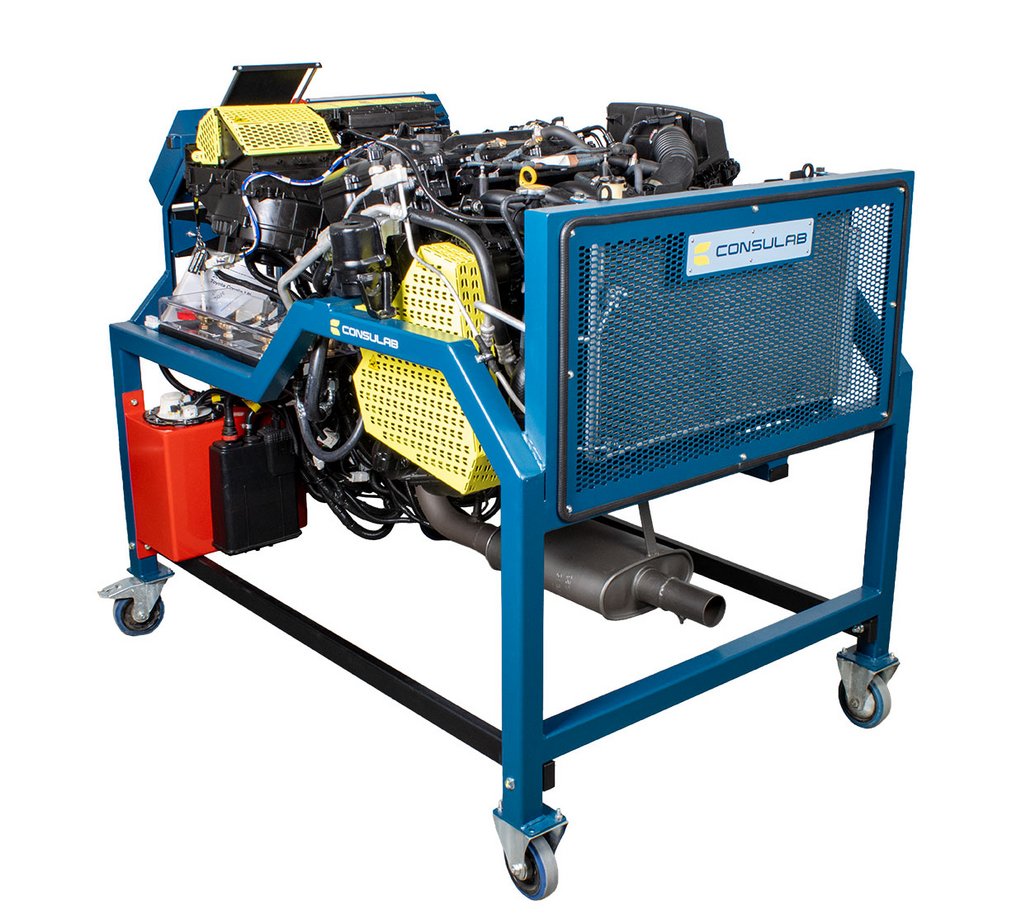

The ConsuLab EM-140C-TYO2 engine trainer is a fully functional recycled engine mounted on a mobile stand. The trainer is based on a 2014-2018 Toyota Corolla 1.8L global vehicle platform. The trainer has easy access for service procedures of all major components. Wire colors and connectors match OEM configuration and service information. Trainer is mounted on a mobile stand constructed of powder coated 2” square steel tubing equipped with four 5” phenol casters (2 fixed and 2 swivel w/locks) for easy transport. Many ASE Education Foundation tasks can be performed with this trainer pertaining to areas A6 (Electrical) & A8 (Engine Performance). Full protection safety guards are installed covering all rotating components.

Technical Details

Product code EM-140C-TY02A_035002

Educational Advantages

Allows instructional demonstrations to students without access limitations of a complete vehicle.

Engine systems respond to inserted faults with real world symptoms, DTC’s, scan tool PID’s and check engine light operation.

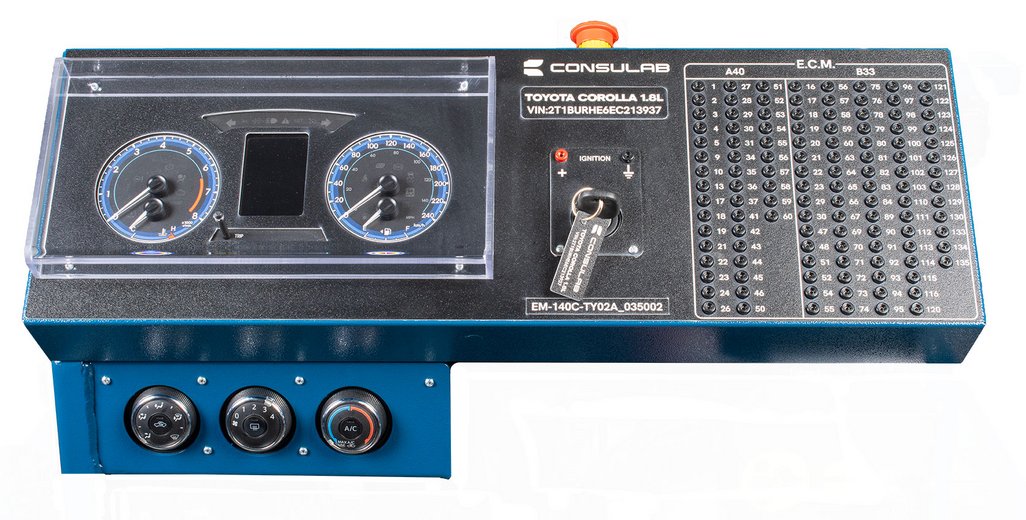

Included PCM break out box with OEM terminal I.D. that allows easy access for component testing without disconnecting connectors.

No simulation. All original OEM components are used.

Available with two HVAC options - (with or without clear sight glasses & pressure gauges).

Promotes student “ownership” and engagement with “hands-on” learning with real components.


ControlPort fuel injection fuel system

2ZR-FE Engine technology

Dual VVT-i (Camshaft variable valve timing)

Functional OEM instrument panel

OEM EVAP system

Electronic Throttle Control

Wide-Band Lambda sensor

CAN Bus network

Functional OEM instrument panel


2014-2018 Toyota Corolla with specific vehicle VIN number provided
