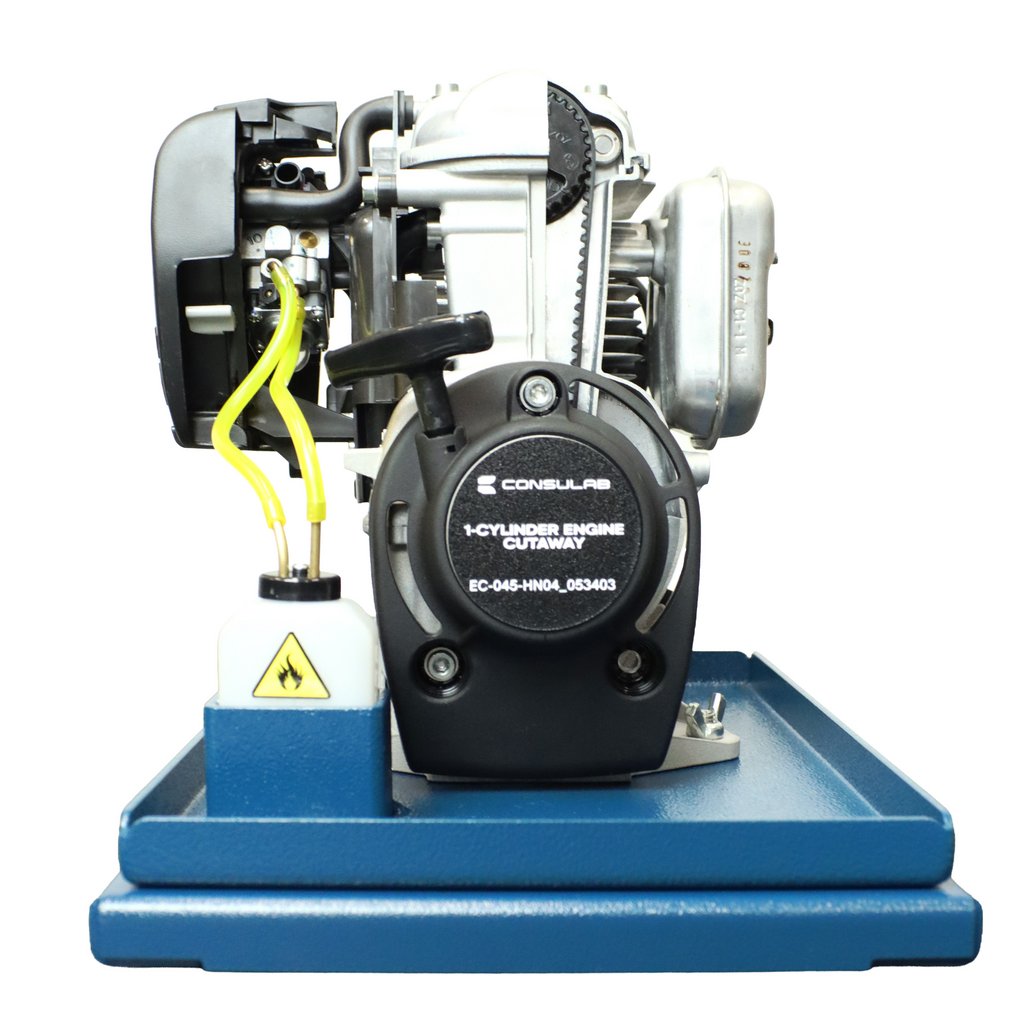

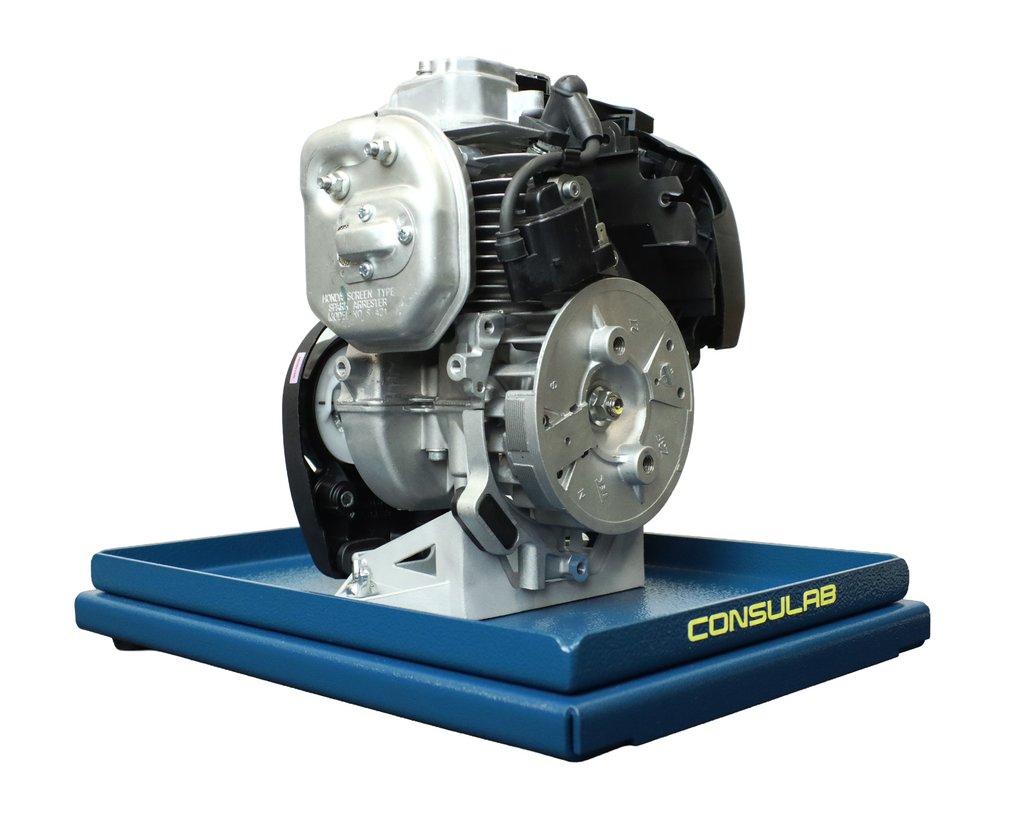

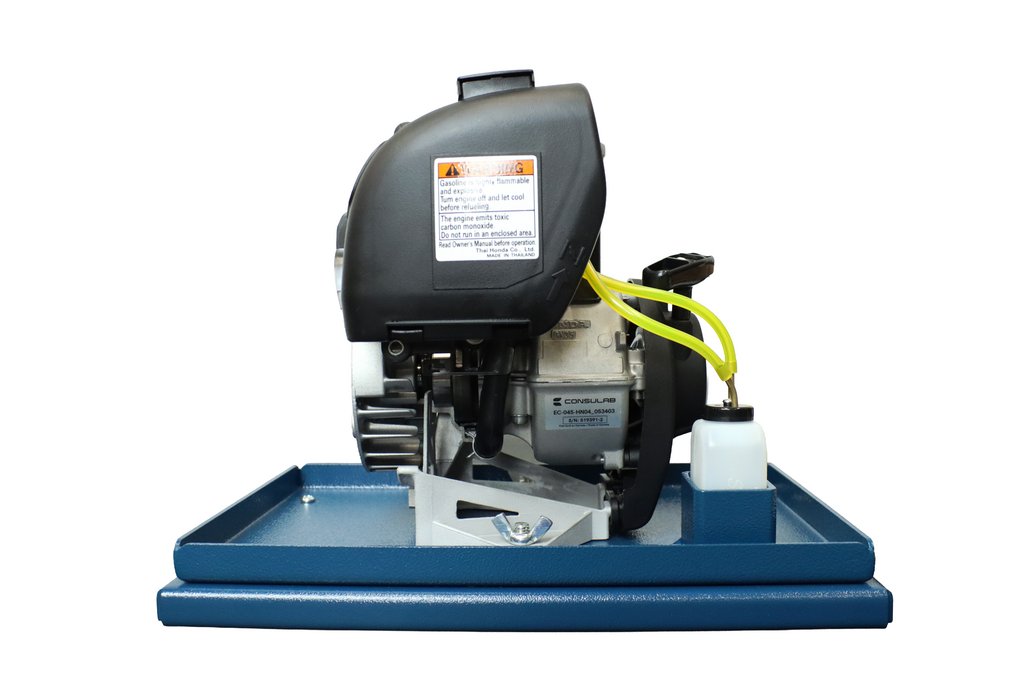

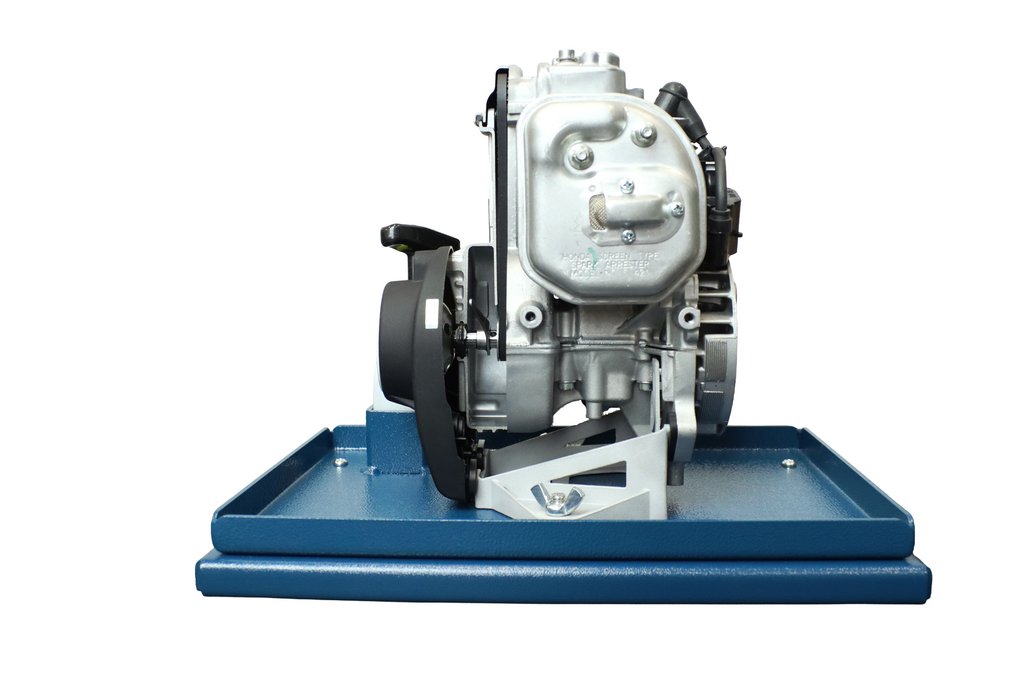

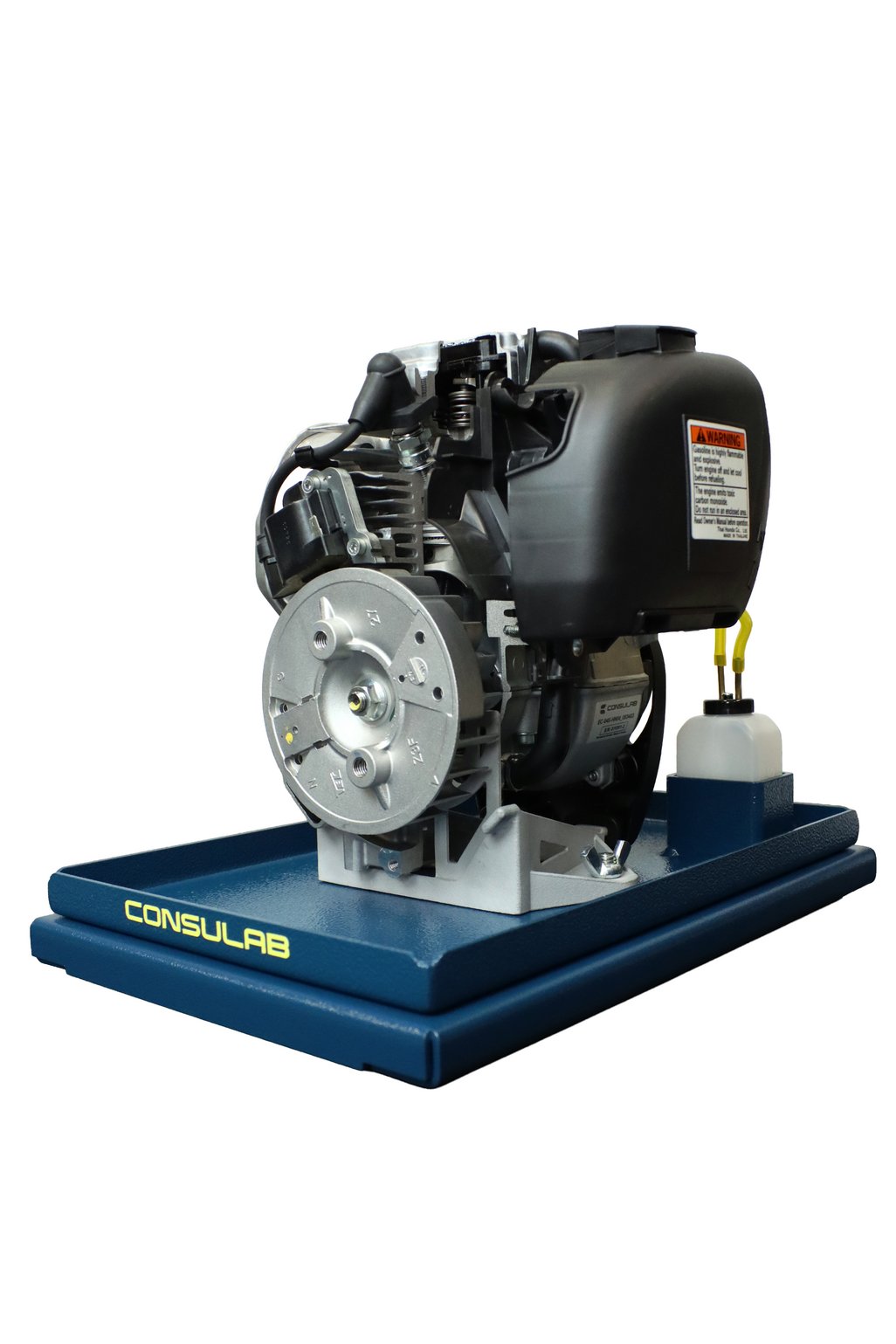

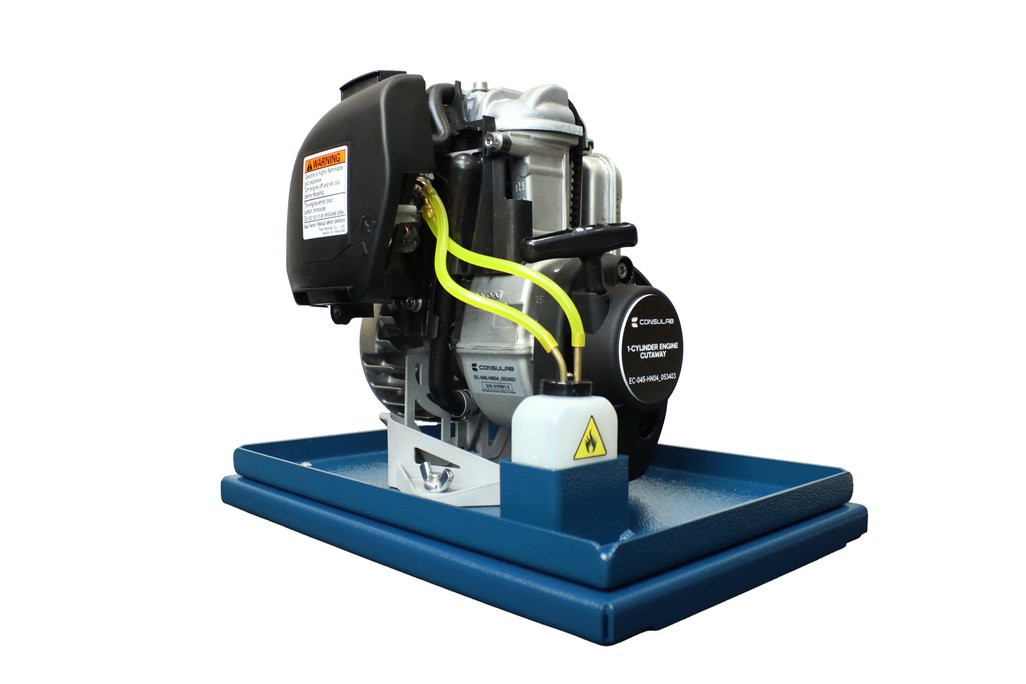

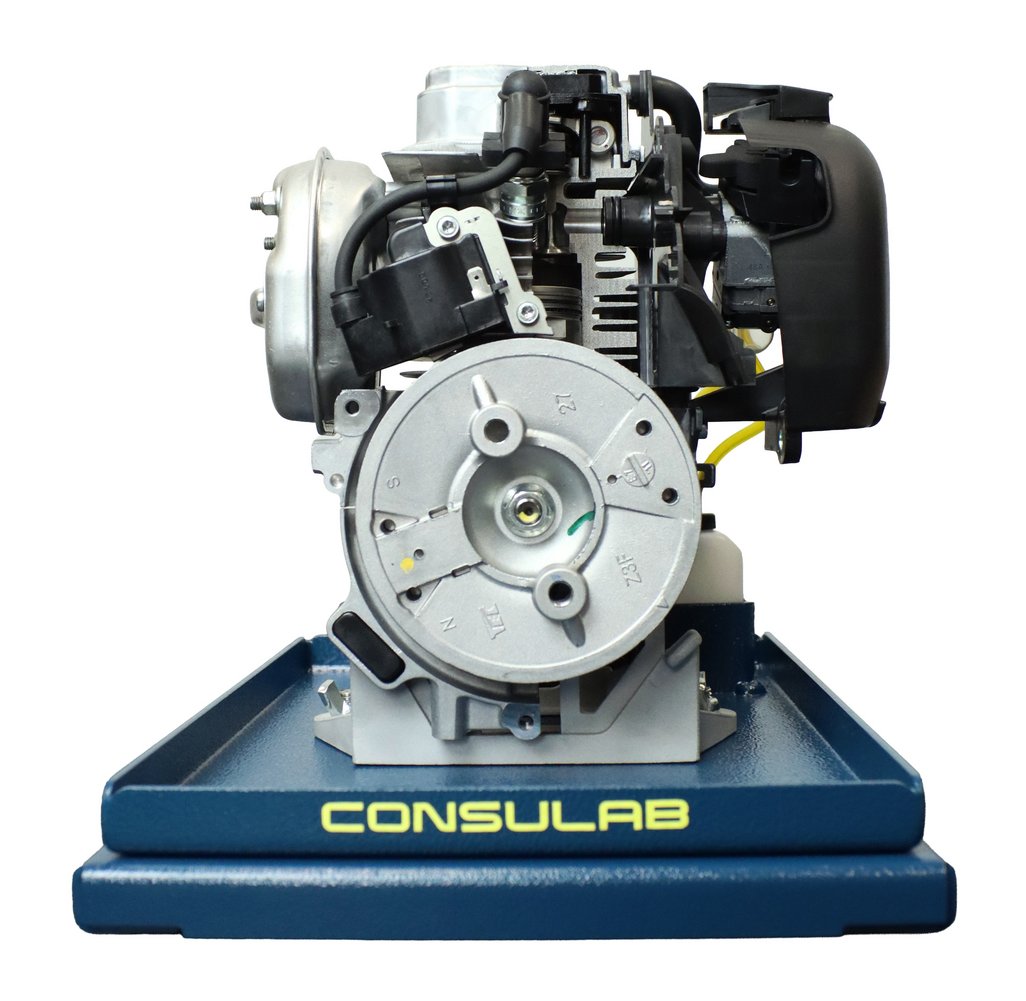

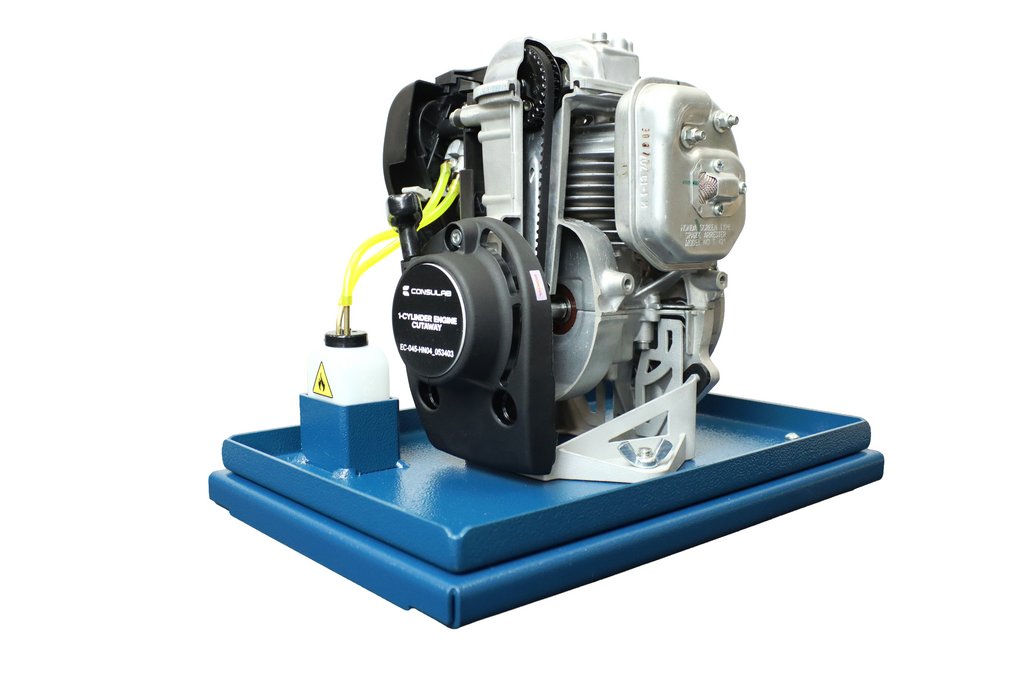

1-cylinder engine cutaway

Understanding how a four-stroke gasoline engine works is much easier when students can see the process in motion. That is why the 1-cylinder engine cutaway has been specifically designed to provide a clear, visual understanding of four-stroke gasoline engine operation. By exposing the internal components through cutaway sections, the trainer helps students connect theory to real mechanical movement as they observe the relationship between the crankshaft, camshaft, valve train, piston assembly, lubrication system, and ignition components throughout the combustion cycle. For instructors, the value is simple: the trainer makes complex engine fundamentals easier to demonstrate, explain, and understand. It enables instructors to effectively demonstrate engine timing, valve operation, piston movement, and power output while reinforcing component identification and system fundamentals. Using the EC-045 single cylinder gives the instructor the advantage of showing engine component operation directly; by making these components visible, students gain a better understanding of combustion principles, mechanical movement, and engine operation before moving to hands-on activities.

• EC-045-HN04_specsheet_EN_REVA.pdf (pdf 186 KB)
